Apply on
Apply onIntroductionFeaturesGuidesAccessing Apply onSelecting optionsSupported types and operationsConfigurationDefault configurationsElement reference documentation<feature> ElementSamplesCreating new Reference type list entries
Introduction
Apply on is a feature in Highstage that enables you to effortlessly alter/update an individual data column (field) across all items in a reference structure by the same applied value and operation.
Whether it be calculating prices or percentages, updating descriptions or adding users to a list, you can achieve it using Apply on. Simply make a single change and let it propagate throughout the entire reference structure.
Features
Apply on enables you to update individual fields on all references simultaneously or on references of specific types in the structure. Furthermore, the tool allows you to select specific operators so that you can specify whether something should be overwritten, added to, subtracted from, or calculated.
Guides
Accessing Apply on
To access Apply on:
- Navigate to any item page (e.g. Document, Action, Part, Device).

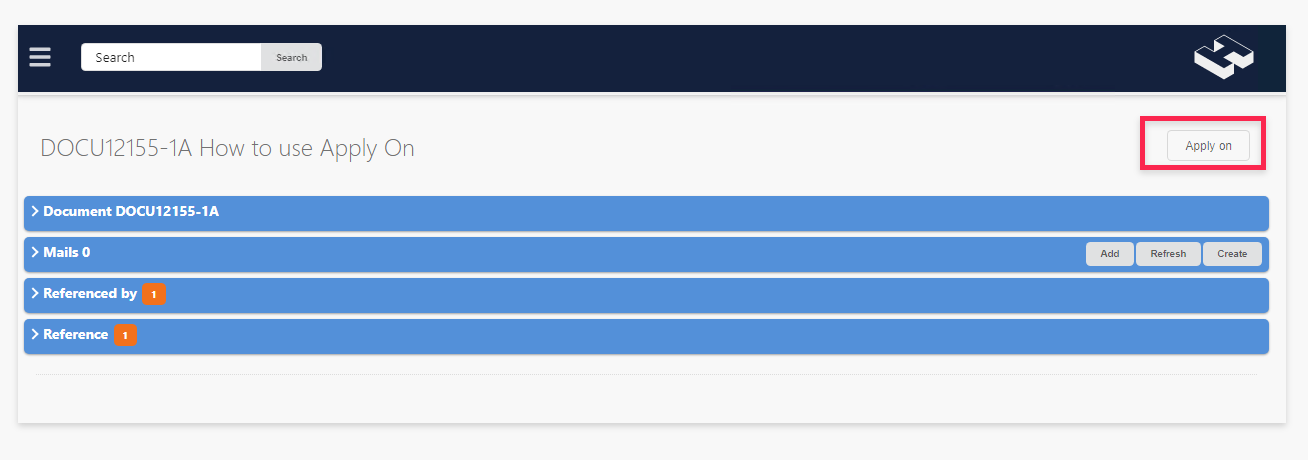

- Click Apply on when available from the top navigation header.
Note: Note that availability, access and selectable types and fields of Apply on depends on the configuration of the feature. By default, we allow access for authors on working Documents, Parts and Devices. In addition, we allow access for all listed resources on Actions.
Selecting options

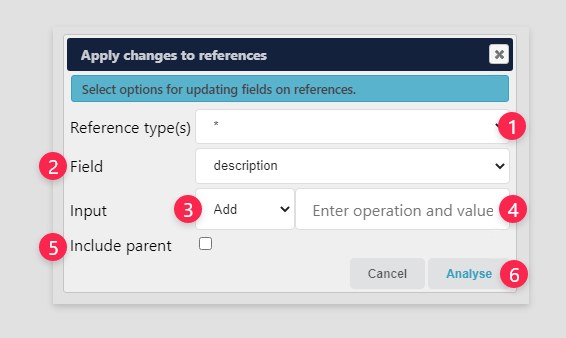

To fill out the available options:
- (1) Select from the list of available reference type(s) (a selection can be a list of one or more types where only data columns (fields) on references of the selected types will be considered).
Note: Having
*available as a an option means that all types of references will be considered.
- (2) Select which field to update in the available Field drop down menu.
- (3) Select which Input operation to be applied to the field using our supported types and operations.
- (4) Fill out the Input text field with the changes you would like to submit to the selected field.
- (5) (optional) Check Include parent to apply the change to the current item.
- (6) Click Analyse to review the pending changes.

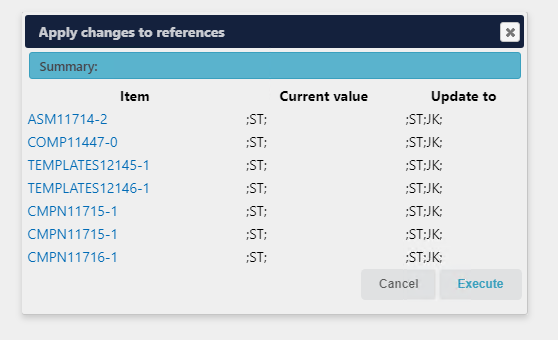

A summary with current and tentative changes to the field for all affected references in the structure will be displayed for your consideration before being applied:
- Click Execute to accept and commit all changes.

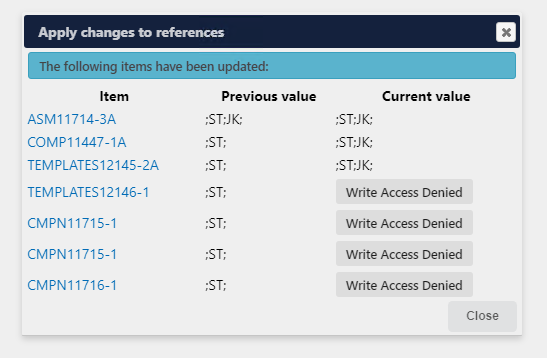

A summary of all applied changes will be displayed:
Security considerations: Note that Write Access Denied will be displayed if the input is not supported (invalid) or if you do not have write permissions on the field. Apply on enforces standard Highstage security and no changes to fields will be made if you do not have proper permissions for making changes or if the input is invalid.
Supported types and operations
Only a subset of the available operations are available and supported for each individual data column (field) type. The following tables provide you with a clear understanding of field data types and their supported operations:
The following operations are available for text fields:
| Operation | Description | Sample |
|---|---|---|
| Add | Append input to existing value. | Add abc to field with the value 123 resolves to be 123abc. |
| Subtract | Removes all occurrences of input from the existing value (input is case sensitive). | Subtract is from field with the value Mississippi resolves to be Mssippi. |
| Equals | Replaces existing value with input. | Set equals to abc123 will set field to be exactly abc123. |
| Prepend | Prepend input to existing value | Prepend 123 to TEST becomes 123TEST. |
The following operations are available for bit/boolean fields (checkboxes):
| Operation | Description | Sample |
|---|---|---|
| Equals | Replaces existing value with input (to enable/check or disable/uncheck). | Set equals to 0 or false to uncheck (disable).Set equals to 1 or true to check (enable). |
The following operations are available for numeric (integer/float) fields:
| Operation | Description |
|---|---|
| Add | Add to existing value. |
| Subtract | Subtract from existing value. |
| Equals | Sets new value. |
| Multiply | Multiplies value. |
Note: Please note that float data column (fields) makes use of period (
.) as a decimal separator.
The following operations are available for list fields:
| Operation | Description | Sample |
|---|---|---|
| Add | Append input to existing list (if input is a valid list entry/entries). | Add PD;GH to ST becomes ST;PD;GH. |
| Subtract | Removes input from list (if input is a valid list entry/entries). | Subtract GD from TR;GD;PP becomes TR;GD. |
| Equals | Overwrites list and replace with input (if input is a valid list entry/entries). | Set equals to JB;PRO;AV overwrites existing contents altogether and becomes JB;PRO;AV. |
Configuration
This section introduces Highstage administrators to the various configuration capabilities of Apply on.
Default configurations
The following profile is shipped with Highstage and makes Apply on available on all Documents, Parts and Devices:
<type name="ts_item"> <feature name="apply-on" scope="*" trustees="ActiveResource1;AdminWrite" field="description;alias;workspace;author;reviewby;approveby;sharewith;copyto;note" /> </type>This configuration enables authors on working Documents, Parts or Devices to be able to update/alter any of the listed fields on references of all types.
The following profile is shipped with Highstage and makes Apply on available on all Actions:
xxxxxxxxxx <type name="action"> <feature name="apply-on" trustees="Resources;AdminWrite" scope="*" field="description;alias;workspace;sharewith;copyto;note;closed" /> </type>This configuration enables any resource assigned to an action to be able to update/alter any of the listed fields on references of all types.
Element reference documentation
Elements and Attributes:
| Element | Attribute | Description |
|---|---|---|
<type> | name | Specific type of items from where Apply on feature will be available. |
<feature> | name, trustees, scope, field | Feature configuration. |
<feature> Element
| Name | Description | Mandatory |
|---|---|---|
name | Mandatory name of the <feature> element | ✔️ |
trustees | List of vector roles who is granted permissions to access and use Apply on (If no trustees are defined then AdminWrite;AdminRead;Resources will be applied and enforced). | ❌ |
scope | Lists of specific types (base- and/or subtypes) of references to be considered (specifying * will consider all base- and subtypes). | ✔️ |
field | List of data columns (fields) to be available for selection. | ✔️ |
Samples
Creating new Reference type list entries
The following sample shows how you can create any number of list entries to include any number of base- and or subtypes. When selected by a user, only references of those specific types will be considered.
Each entry of base- and/or subtypes can be configured by separating each set with a semicolon (;) and separating each type in the list entry (set) by a comma (,).
Sample:

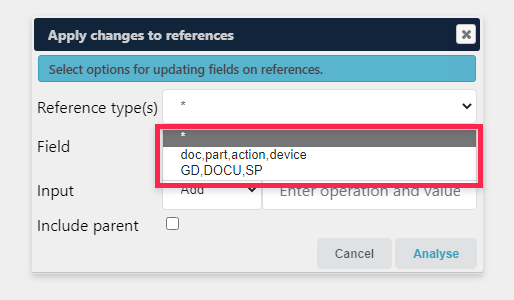

xxxxxxxxxx <type name="ts_item"> <feature name="apply-on" scope="*;doc,part,action,device;GD,DOCU,SP" trustees="ActiveResource1;AdminWrite" field="description;alias;workspace;author;reviewby;approveby;sharewith;copyto;note" /> </type>Result:
