Consolidated Bill of Materials (CBOM)

Consolidated Bill of Materials (CBOM)BackgroundFeaturesGuidesAccessing Consolidated Bill of MaterialsLayoutConfigurationDefault configurationConfiguring new profiles<profile> Element<field> ElementSamplesConsolidation with filteringConsolidation with multiple filtersConsolidation with unit of measurementsConsolidation with unit of measurements (using runtime variables)

Background

Highstage enables you to make use of the Consolidated Bill of Materials feature to summarize and calculate various quantities at all levels in a component structure for a manufacturing bill of material report.

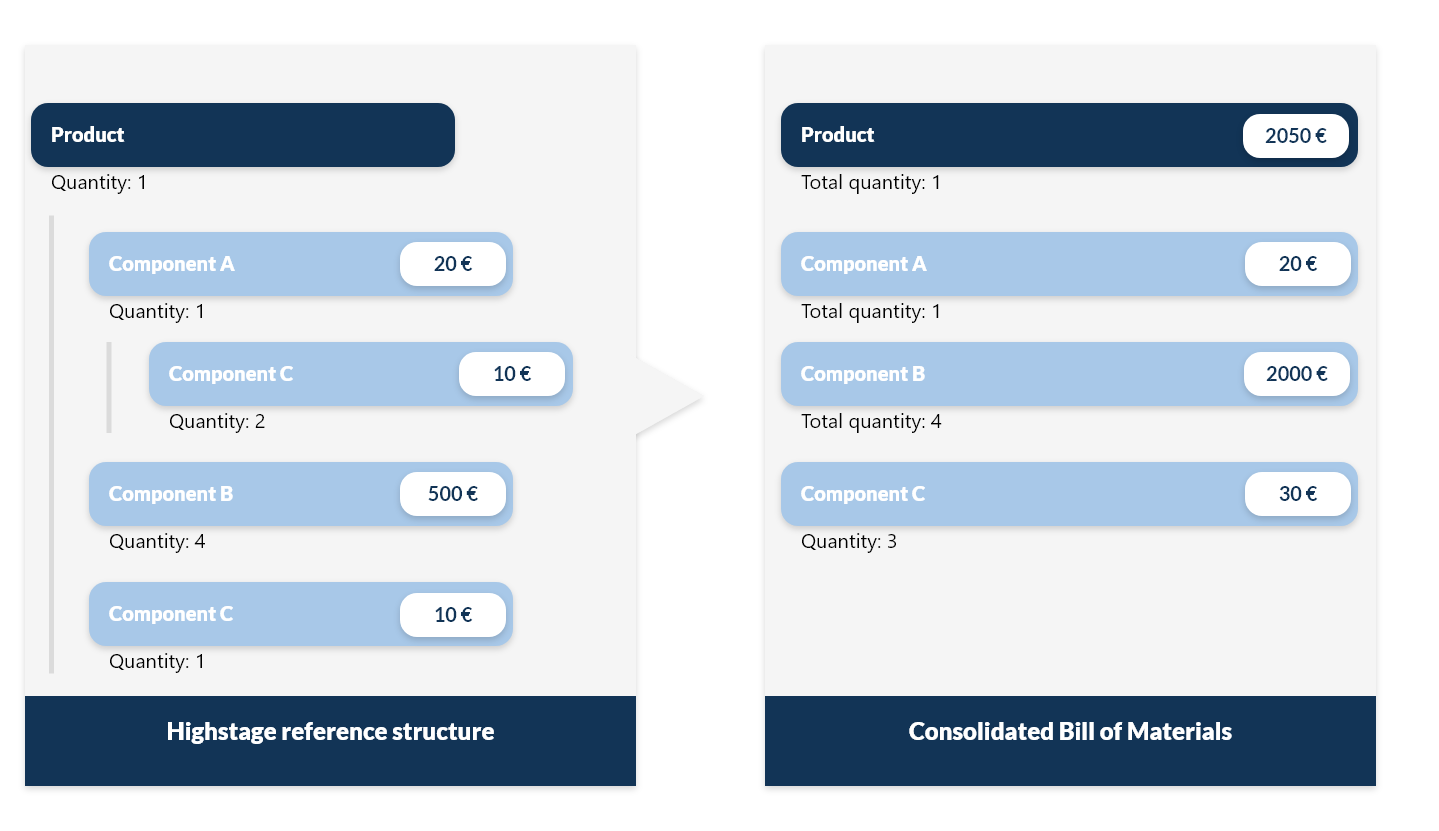

In this manner, it is now possible to get a general overview of entire structures as each item appears only once - but includes the total sum of occurrences (regardless of where they occur in the structure) alongside any additional calculated summary of values on each individual component:

In this article, you will learn about all of the capabilities, options and configurations available.

Features

The following capabilities are supported by the consolidation feature:

Consolidated quantities: Any quantity to be accumulated (summarized quantities of various numeric fields like quantity, cost, weight etc.).
Profiles: Create any number of profiles to support a large variety of readily available presets (columns, filters, consolidated quantities etc.).
Export: Export capabilities to Microsoft Office Excel file format for external use.

Guides

Accessing Consolidated Bill of Materials

You can access the consolidated bill of materials from any Document, Part or Device in the following manner:

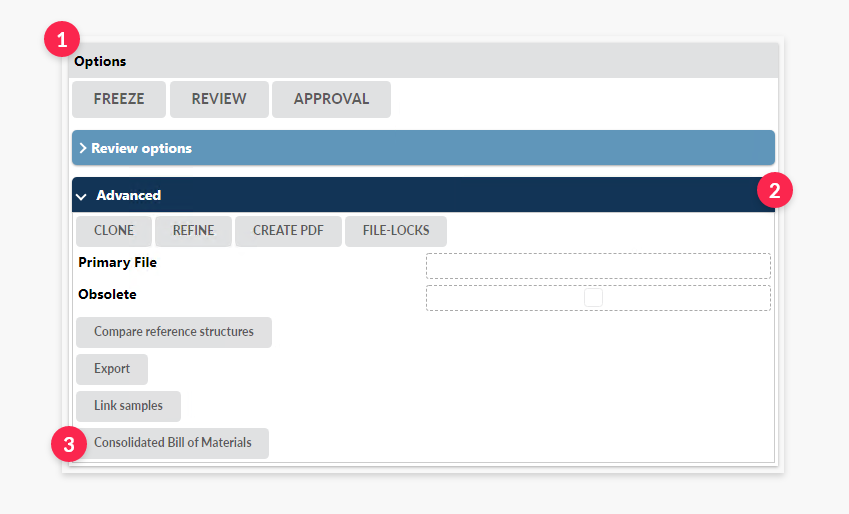

Navigate to Options > Advanced and click Consolidated Bill of Materials (requires a minimum set user level of Advanced User for the advanced section to be available by default).

Layout

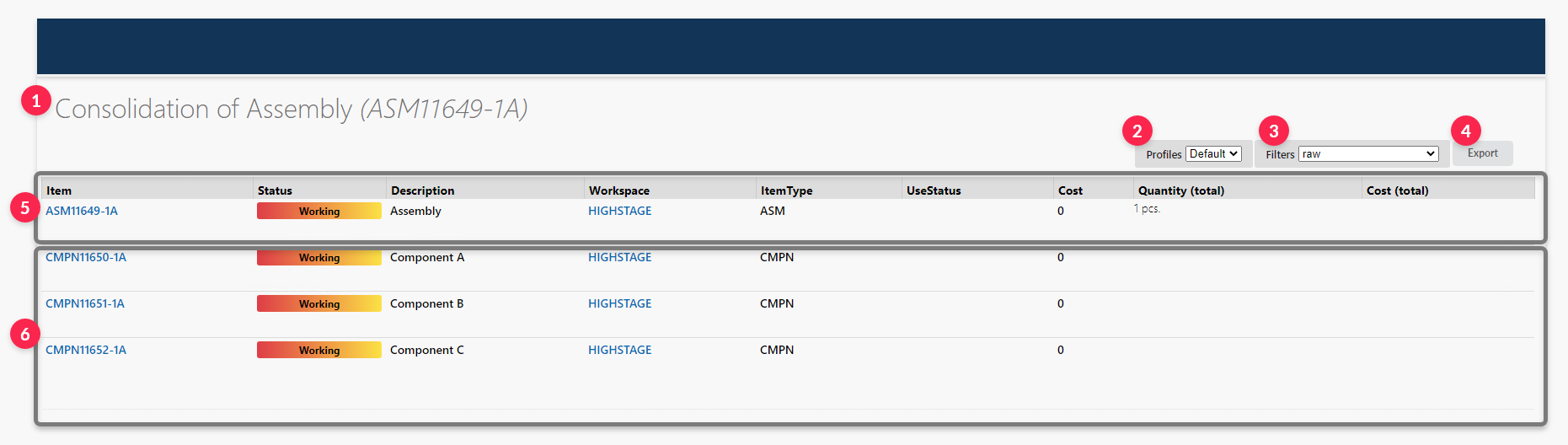

The following contents are available when accessing a consolidated view:

Consolidated Bill of Materials report title (including title and ID of the consolidated item).
Available preconfigured consolidation profiles for selection (configured by Highstage administrators).
Available type filters (filtering for which referenced items to appear in the consolidation list).
Export to Excel (Optional download to browser as .iqy or .xlsx files).
Parent item (from where the consolidation was initiated).
Referenced items (list of all consolidated referenced items with descriptive columns and consolidated quantities).

Configuration

Default configuration

The following consolidation profile is shipped with Highstage and is available on all Documents, Parts and Devices:


    <feature name="consolidated-bom">
      <profile name="default" title="Default consolidation" columns="Item;Status;Description;Workspace;ItemType;useStatus;Cost">
        <field name="qty" title="Quantity (total)" aggregator="ts_ref.qty">
          {result} pcs.
        </field>
        <field name="cost" title="Cost (total)" aggregator="ts_ref.qty*item.cost" />
      </profile>
    </feature>

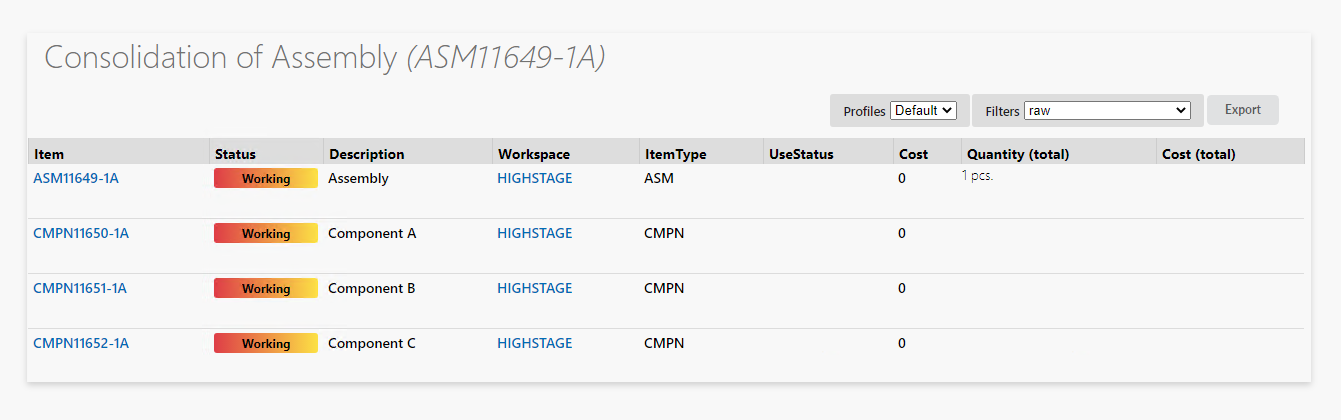

Result:

Configuring new profiles

Any number of profiles can be configured to be readily available for users in Highstage.

The following sample displays all available elements and associated attributes to configure new consolidation profiles:


xxxxxxxxxx
    <type name="____">
        <feature name="consolidated-bom">
            <profile name="___" title="___" columns="___">
                <field name="___" title="___" aggregator="___" filter="____" />
            </profile>
        </feature>
    </type>

Elements and Attributes:

Element	Attributes	Description
`<type>`	`name`	Specific type of items from where the consolidation profile will be available from.
`<feature>`	`name`	Mandatory name to configure new consolidation profiles.
`<profile>`	`name`, `title`, `columns`	Individual consolidation profiles.
`<field>`	`name`, `title`, `aggregator`, `filter`	Various consolidated fields to be calculated and displayed in the report associated with each profile.

<profile> Element

Each individual <profile> can include any number of <field> elements.

Attributes:

Name	Description	Mandatory
`name`	Mandatory unique name of the `<profile>` element.	✔️
`title`	Displayed title of the profile when selected by user.	✔️
`columns`	List of item columns to be displayed in consolidation view.	✔️

<field> Element

Each individual <field> element represents a single consolidated quantity to be calculated (based off of item and/or reference columns) and will be available in the report.

Attributes:

Name	Description	Mandatory
`name`	Mandatory unique name of the `<field>` element.	✔️
`title`	Title of profile	✔️
`aggregator`	Define the formula to calculate the consolidated quantity (multiplied item and/or reference columns of numeric types)	✔️
`filter`	Optional filtering to only consider specific referenced items for consolidation (permitted operations includes `=`, `!=`, `<`, `>`, `>=`, `<=`. ). Multiple filters can be specified but requires a `;` separation.	❌

Samples

Consolidation with filtering

This sample illustrates how a cost consolidation can be filtered to only include/calculate costs on components with a usestatus of preferred:


x
    <type name="part">
        <feature name="consolidated-bom">
            <profile name="sample"
                     title="Sample consolidation"
                     columns="Item;Status;Description;Workspace;ItemType;useStatus;Cost">
                <field name="qty"
                       title="Quantity (total)"
                       aggregator="ts_ref.qty">
                {result} pcs.
                </field>
                <field name="cost"
                     title="Cost (total)"
                     aggregator="ts_ref.qty*item.cost"
                     filter="item.usestatus=Preferred">
                </field>
            </profile>
          </feature>
    </type>

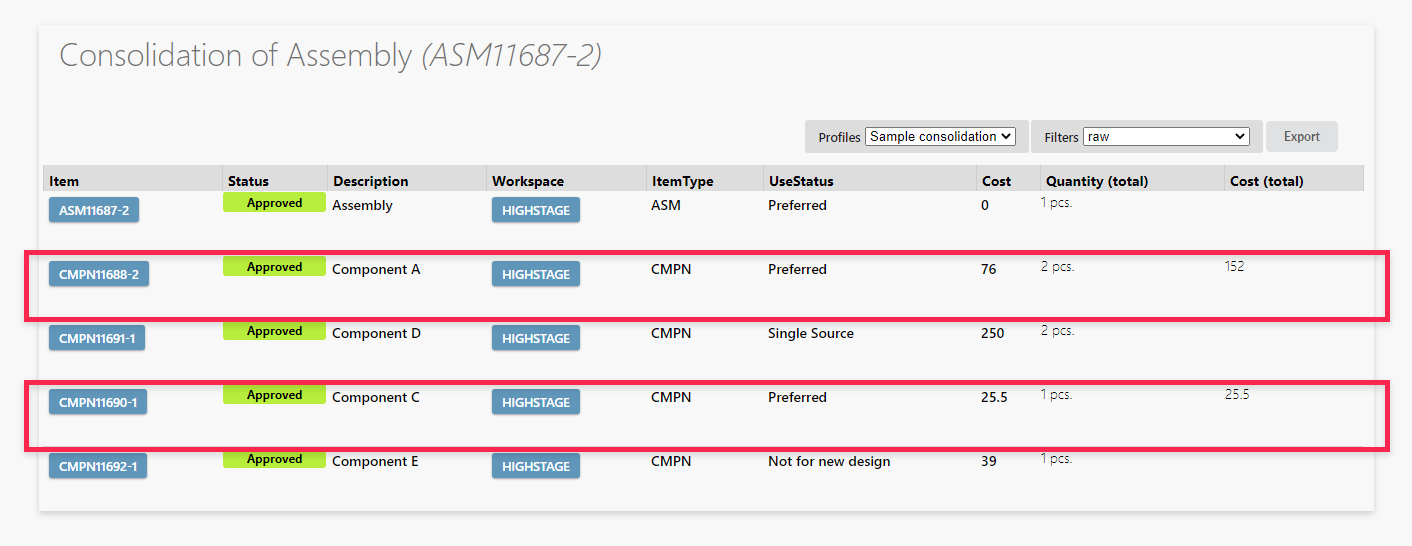

Resulting in a consolidation where only costs are calculated for components with a usestatus of Preferred:

Consolidation with multiple filters

A consolidation can be filtered using any number of conditions. Each individual criteria must be satisfied for the field to be consolidated.

In this sample we illustrate how a cost consolidation can be filtered to only include/calculate cost on components with the following filters:

Cost must be more than 0 (item.cost>0).
Item must be of usestatus Preferred (item.usestatus=Preferred).
Position must be A (ts_ref.post=A).

Sample:


xxxxxxxxxx
    <type name="part">
        <feature name="consolidated-bom">
            <profile name="sample" title="Sample consolidation" columns="Item;Status;Description;Workspace;ItemType;useStatus;Cost">
              <field name="qtytotal" title="Quantity (total)" aggregator="ts_ref.qty">
                {result} pcs.
              </field>
              <field name="costtotal" title="Cost (total)" aggregator="ts_ref.qty*item.cost" />
              <field name="qtyfiltered" title="Quantity (filtered)" aggregator="ts_ref.qty" filter="item.cost>0;item.usestatus=Preferred;ts_ref.pos=A">
                {result} pcs.
              </field>
              <field name="costfiltered" title="Cost (filtered)" aggregator="ts_ref.qty*item.cost" filter="item.cost>0;item.usestatus=Preferred;ts_ref.pos=A" />
            </profile>
          </feature>
    </type>

Note: Observe that the <field> elements qtytotal and costtotal in the sample consolidates the entire structure whereas the <field> elements qtyfiltered and costfiltered only consolidates the components which satisfies the criteria of the defined filters.

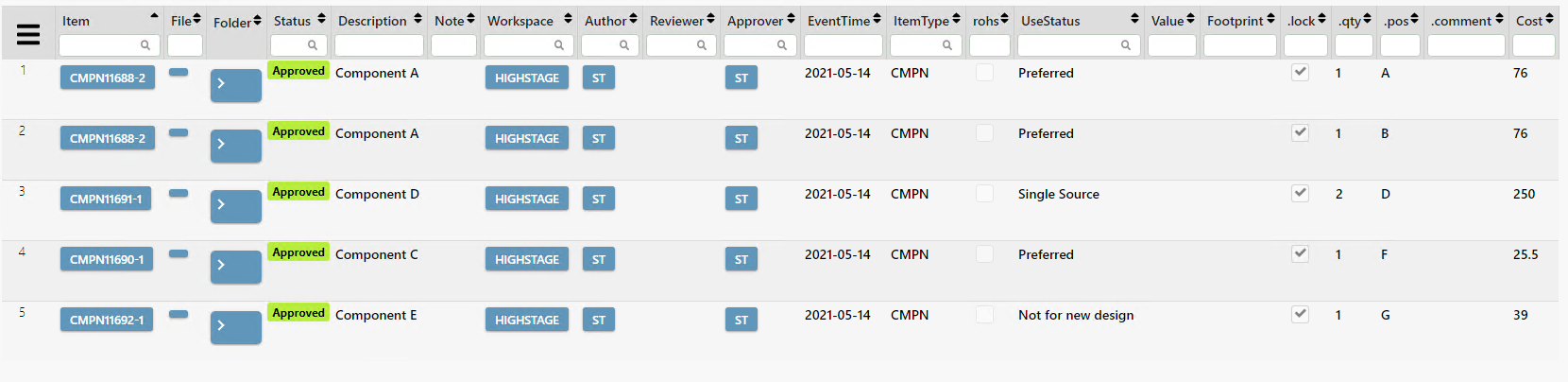

Structure:

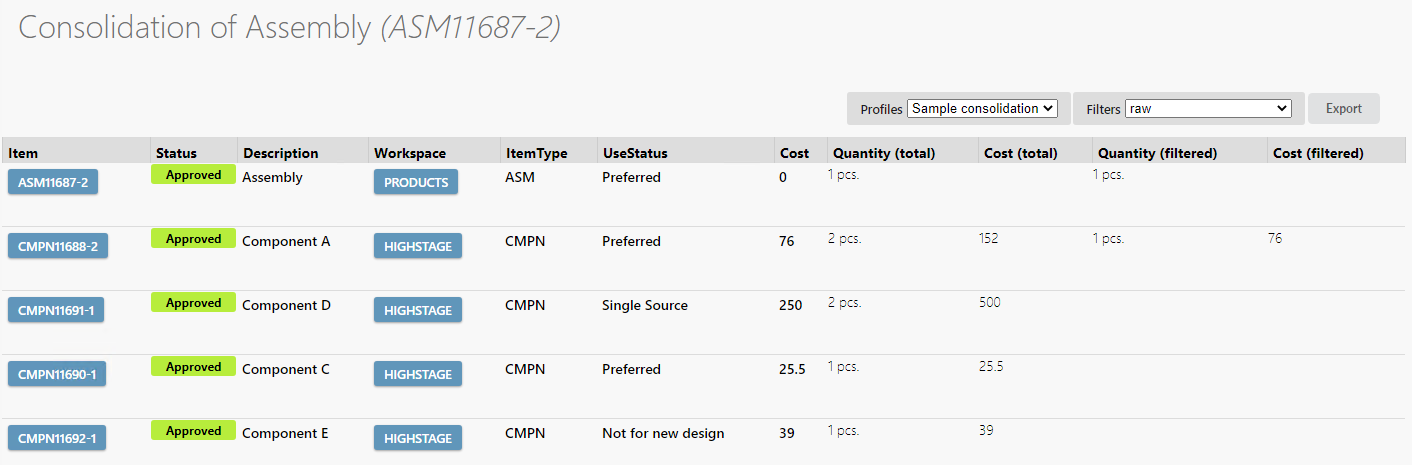

Results:

Note: Notice how CMPN11688-2 (Component A) is the only component where Quantity (filtered) and Cost (filtered) is calculated for one of its occurrences in the structure as it is the only referenced component which satisfies all of the criteria of filtering.

Consolidation with unit of measurements

You can define and display appropriate units to each individual <field> element.

In this sample we illustrate the following:

quantities (qty) are displayed with a unit of pcs.
Costs (cost) are displayed with a unit of $.

Sample:


xxxxxxxxxx
    <type name="part">
        <feature name="consolidated-bom">
            <profile name="sample" title="Sample consolidation" columns="Item;Status;Description;Workspace;ItemType;useStatus;Cost">
                <field name="qty" title="Quantity (total)" aggregator="ts_ref.qty">
                {result} pcs.
                </field>
                <field name="cost" title="Cost (total)" aggregator="ts_ref.qty*item.cost">
                {result} $
                </field>
            </profile>
        </feature>
    </type>

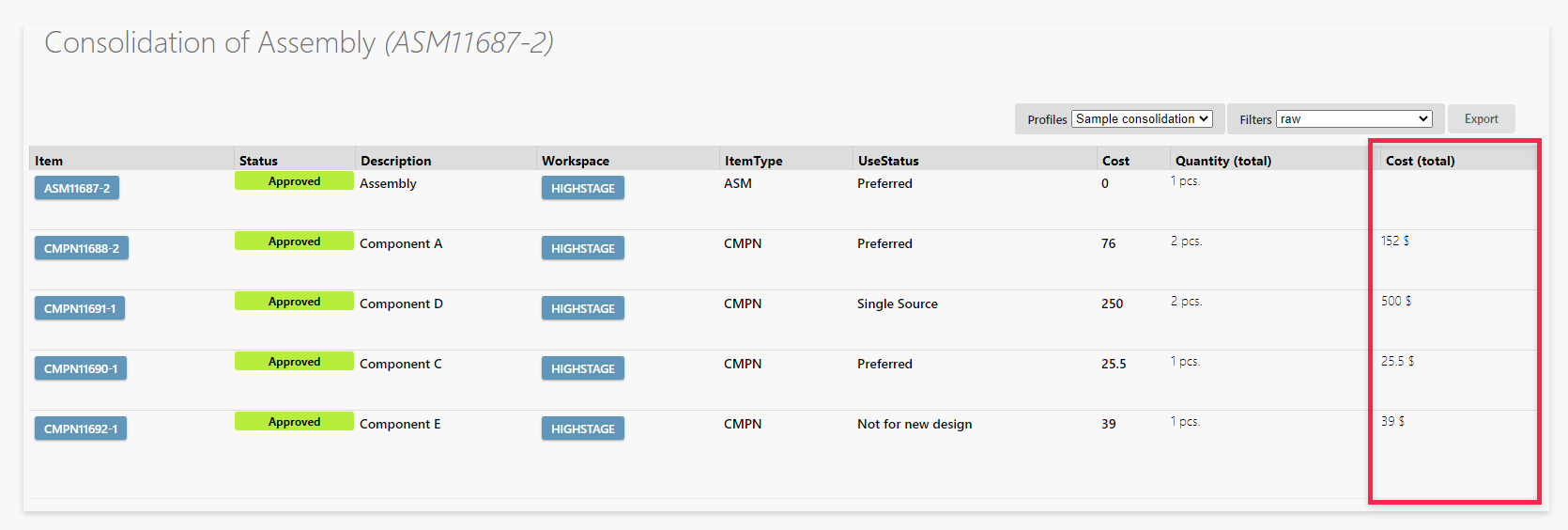

Results:

Consolidation with unit of measurements (using runtime variables)

You can define and display appropriate units to each individual <field> element using runtime variables.

In this sample we illustrate the following:

quantities (qty) are displayed with a unit of pcs.
Costs (cost) are displayed with a unit that corresponds to what is selected in the costcurrency field on each individual component.

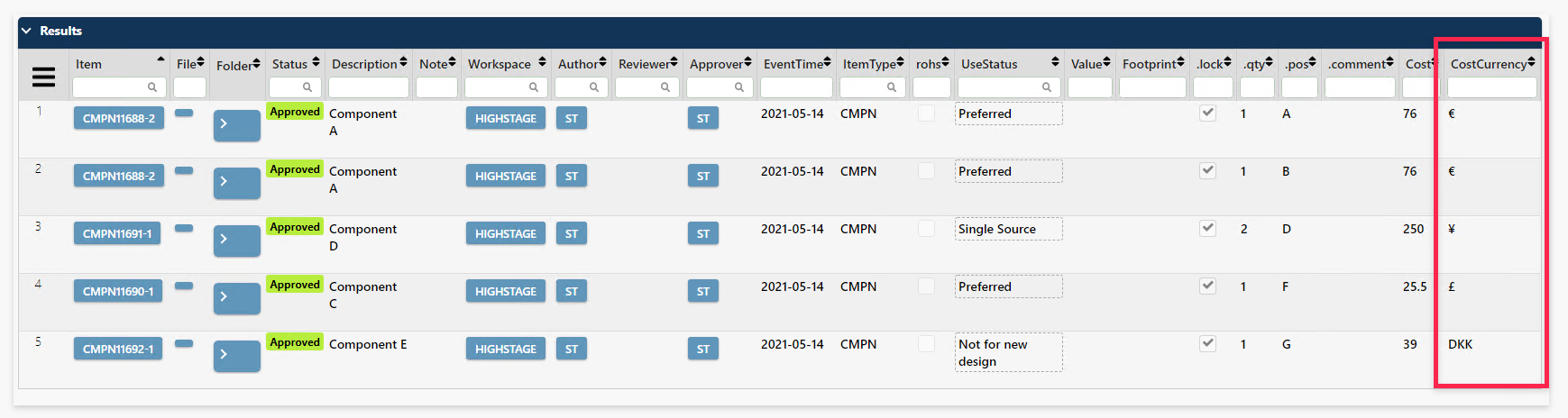

Component structure:

Sample:


xxxxxxxxxx
    <type name="part" dependency="costcurrency">
        <feature name="consolidated-bom">
            <profile name="sample" title="Sample consolidation" columns="Item;Status;Description;Workspace;ItemType;useStatus;Cost">
                <field name="qty" title="Quantity (total)" aggregator="ts_ref.qty">
                {result} pcs.
                </field>
                <field name="cost" title="Cost (total)" aggregator="ts_ref.qty*item.cost">
                {result} {item.costcurrency}
                </field>
            </profile>
        </feature>
    </type>

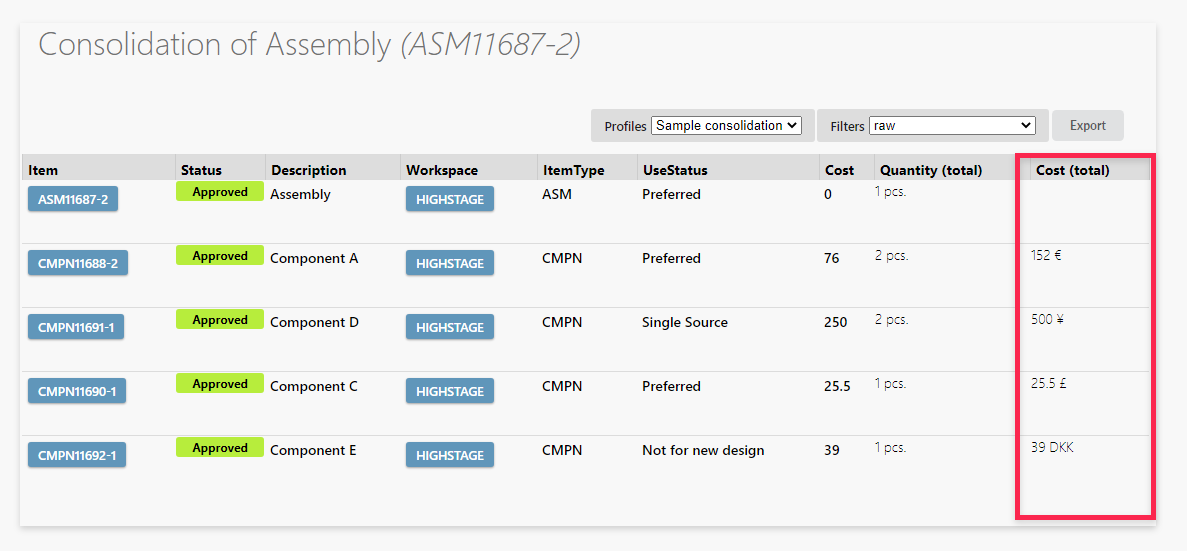

Results:
