Highstage UI Customization

Background

This article introduces you to the available parameters that allows you to customize the look and feel of Highstage through Highstage UI Configuration.

Introduction

We have made it simple to alter the appearance of Highstage whilst also providing you with many more advanced options to fully customize the look of Highstage to suit your needs. Now, you simply need to define the various colors, sizes, icons and effects as parameter values directly in Highstage, to change the appearance of Highstage.

Configuration

To configure the appearance of Highstage, do the following:

1. Ensure that you have administrator privileges' and a set user level of AdminWrite.

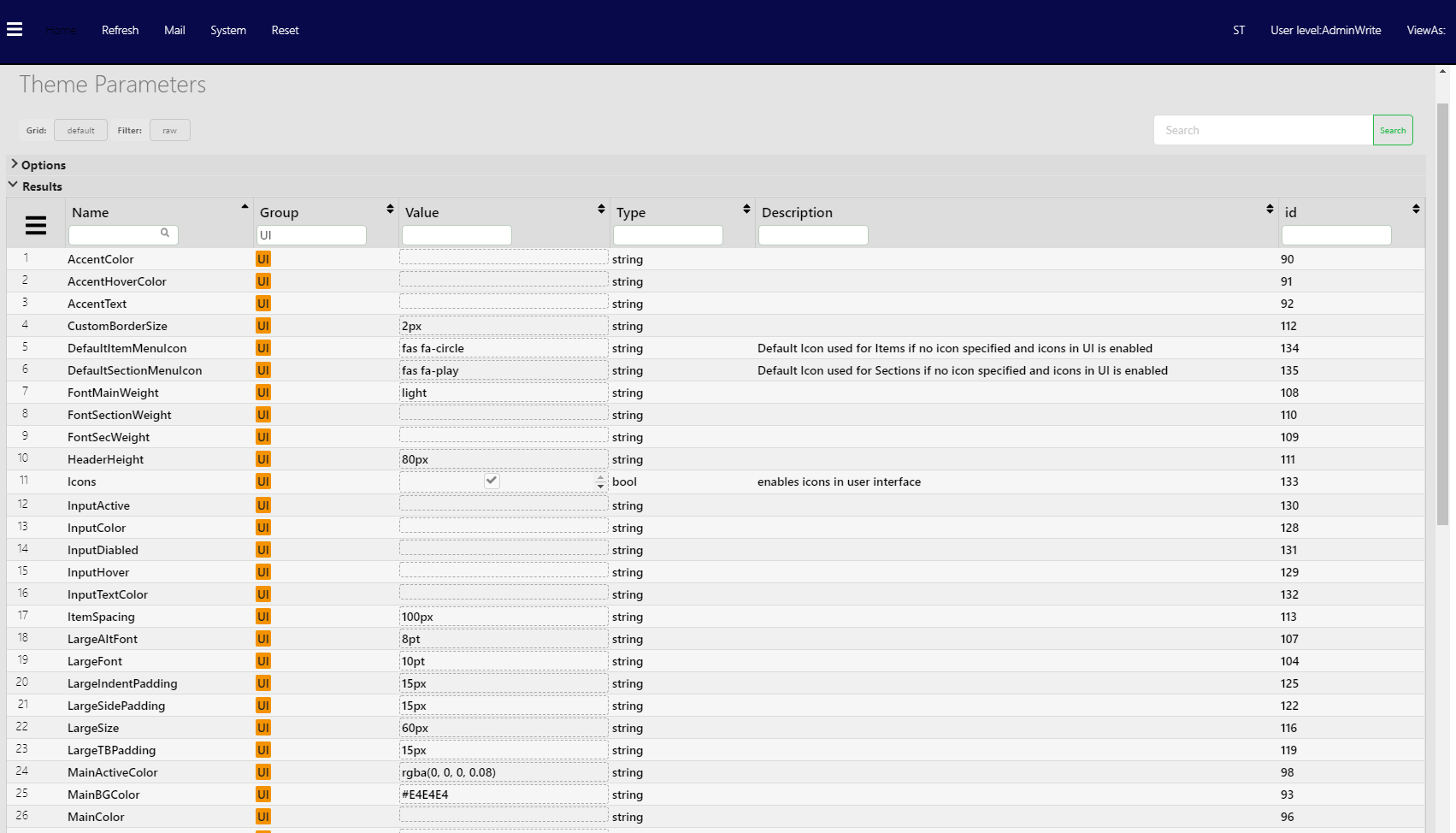

2. Navigate to SYSTEM > Parameters and select UI Parameters in the side navigation menu.

From here, the various parameters are available:

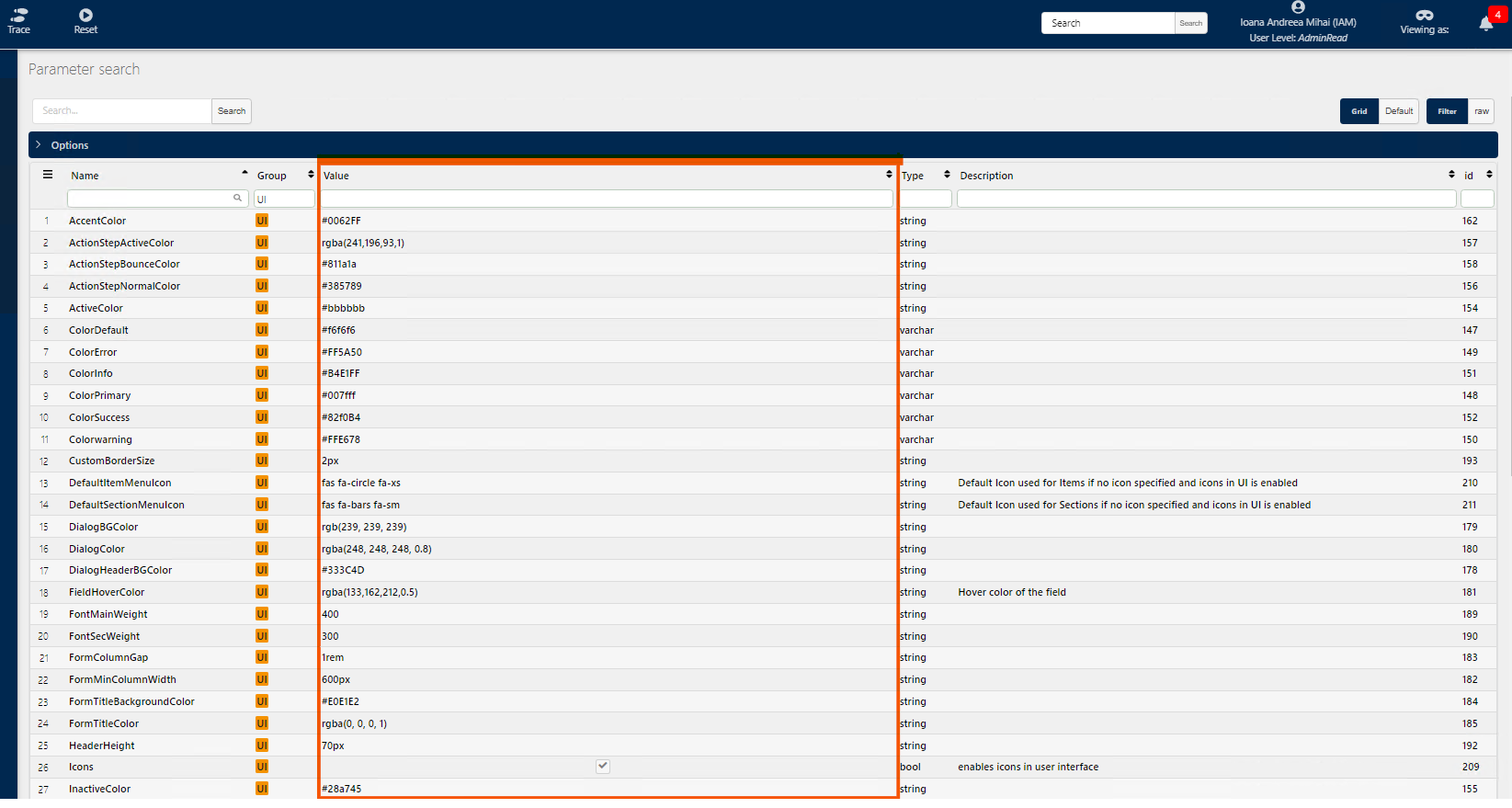

3. Update the Value field of any number of available parameters:

3. Click Reset in the top navigation menu for the changes to take effect.

Notice: When clicking Reset, you are automatically demoted to AdminRead. To make further changes, please upgrade your user level to AdminWrite.

Available Parameters

Descriptive list of available Highstage UI parameters:

Info: For more information of the accepted values for each parameter, please refer to the Accepted parameter values.

Parameter name	Description	Type	Illustration	Default value

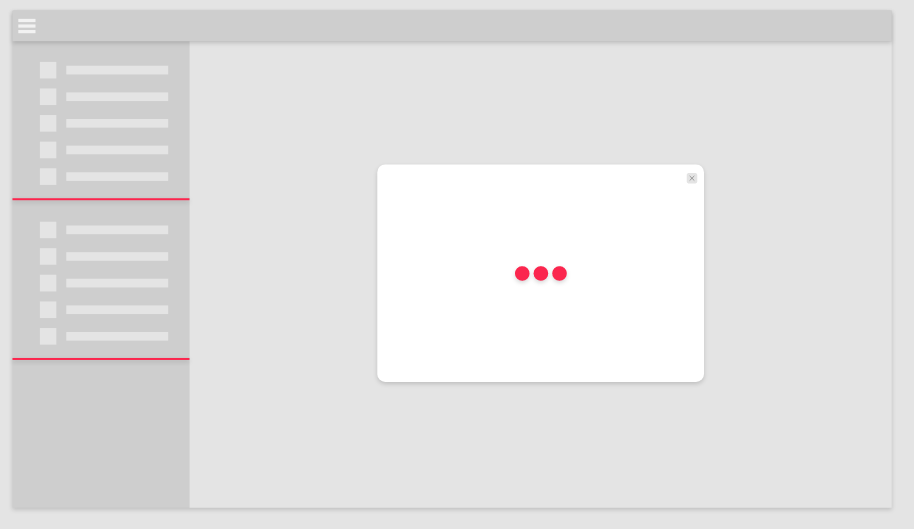

AccentColor	Accent color used for menu separations and loading icon.	Color		#0062FF

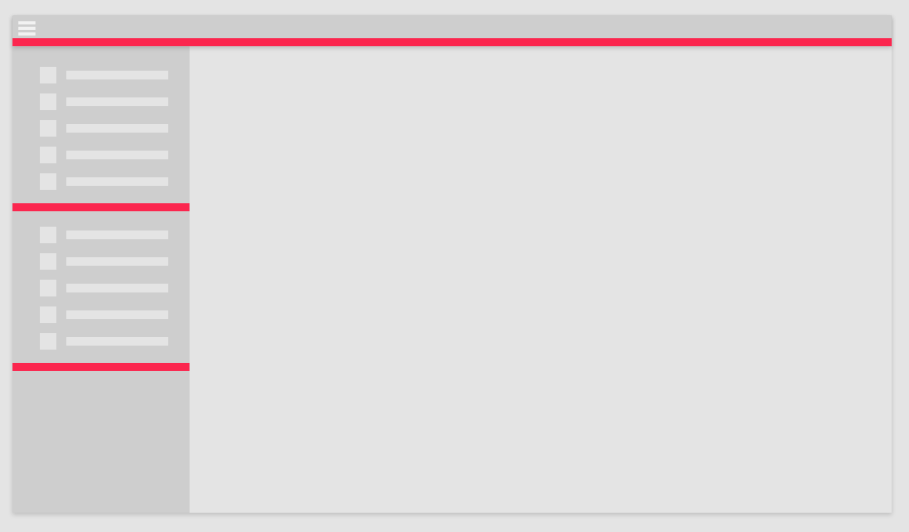

CustomBorderSize	Height of menu separations and header accent line.	Size		2px

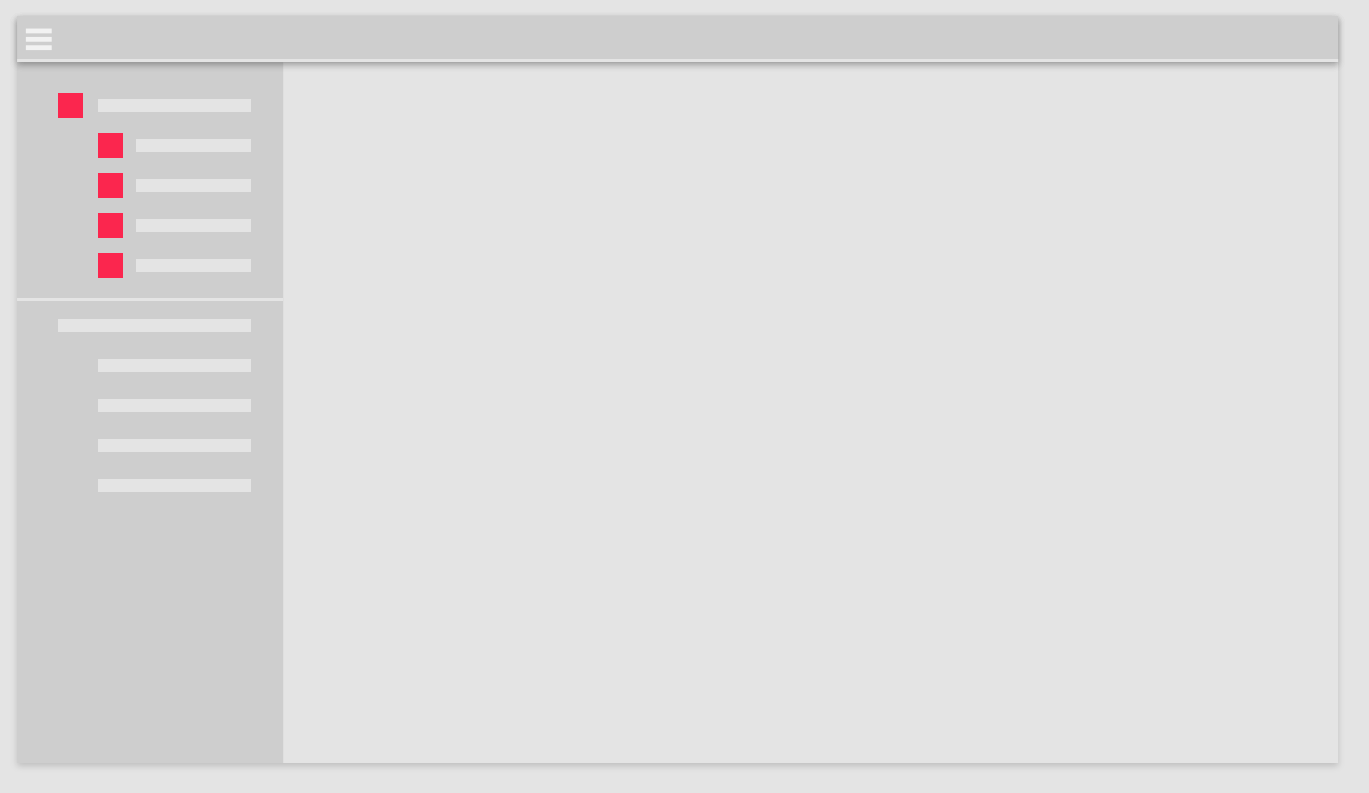

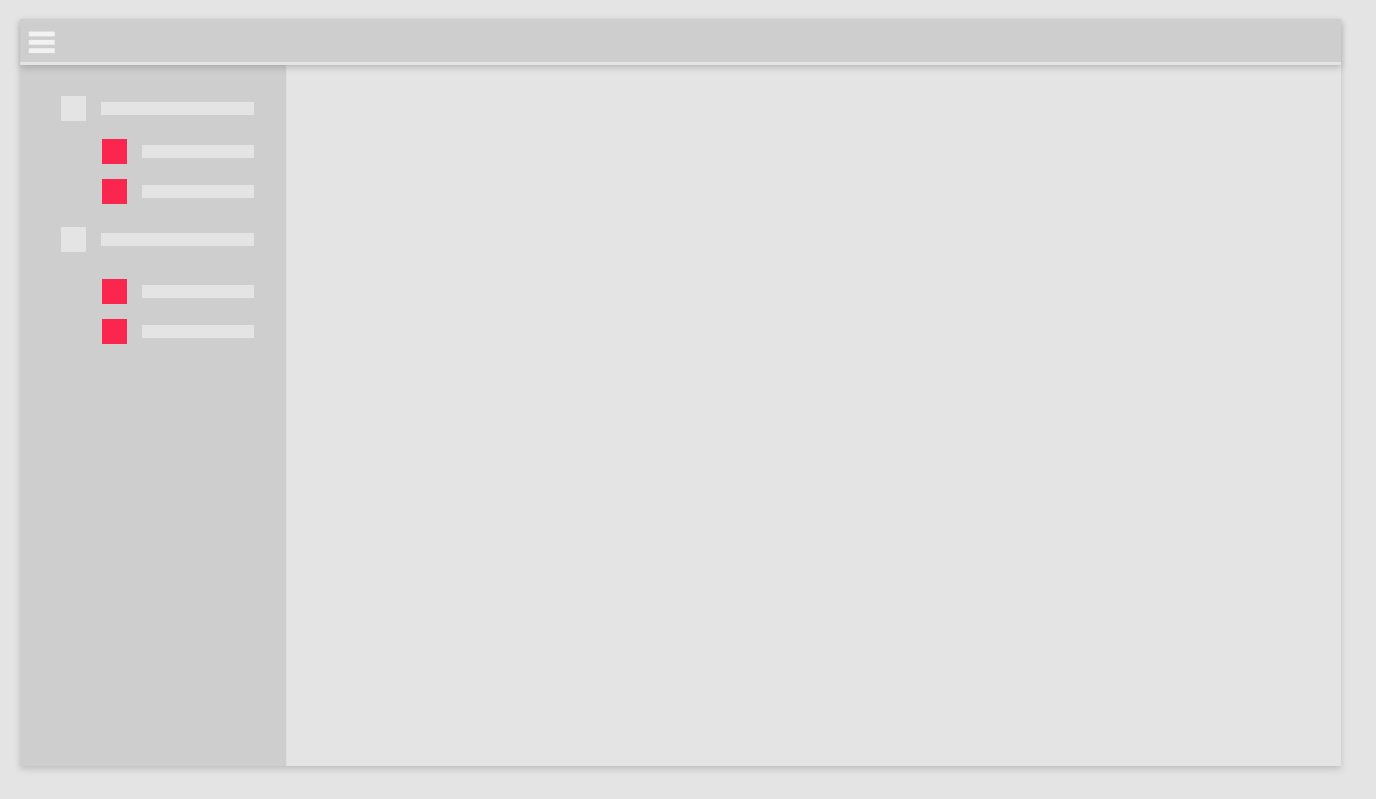

DefaultItemMenuIcon	Default icon to be used for links in the side navigation menu.	Icon		fas fa-circle fa-xs

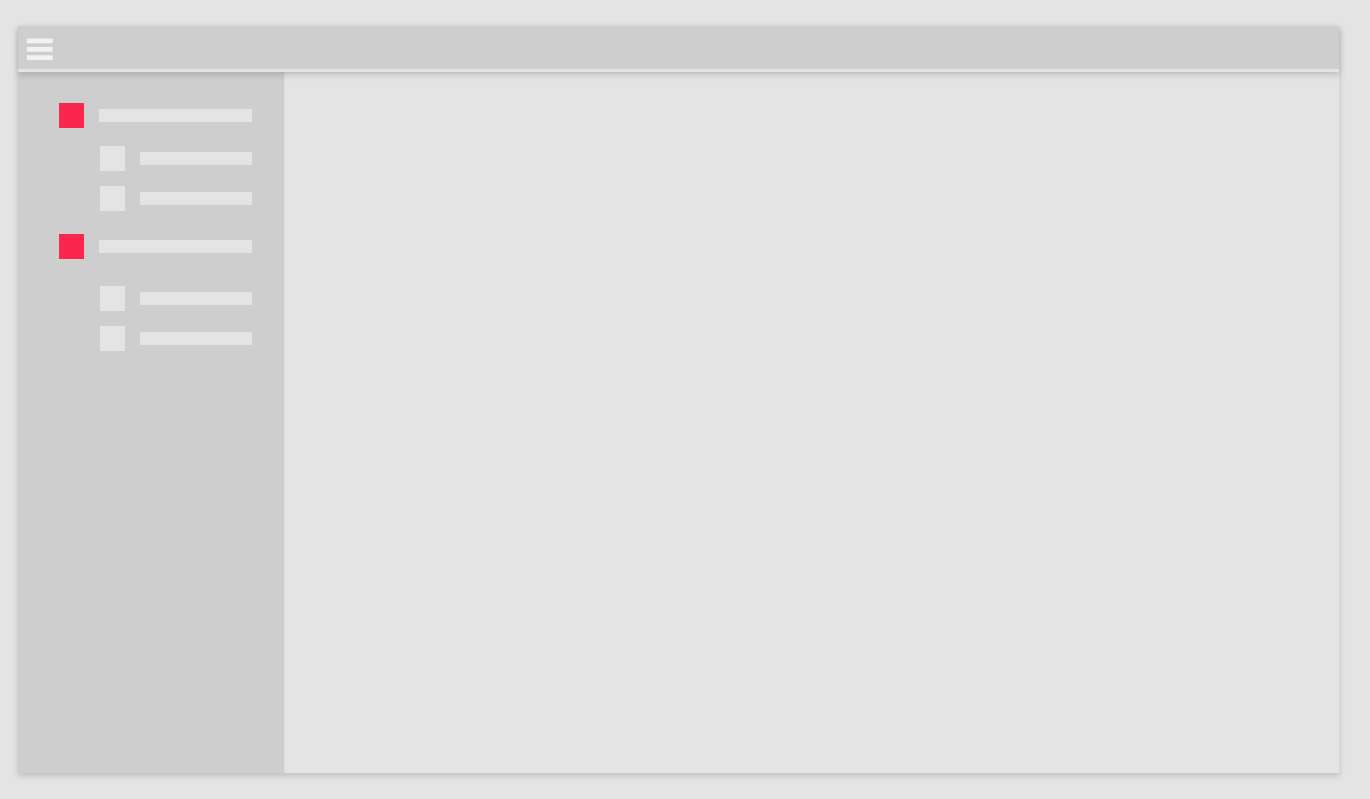

DefaultSectionMenuIcon	Default icon to be used for sections in the side navigation menu.	Icon		fas fa-bars fa-sm

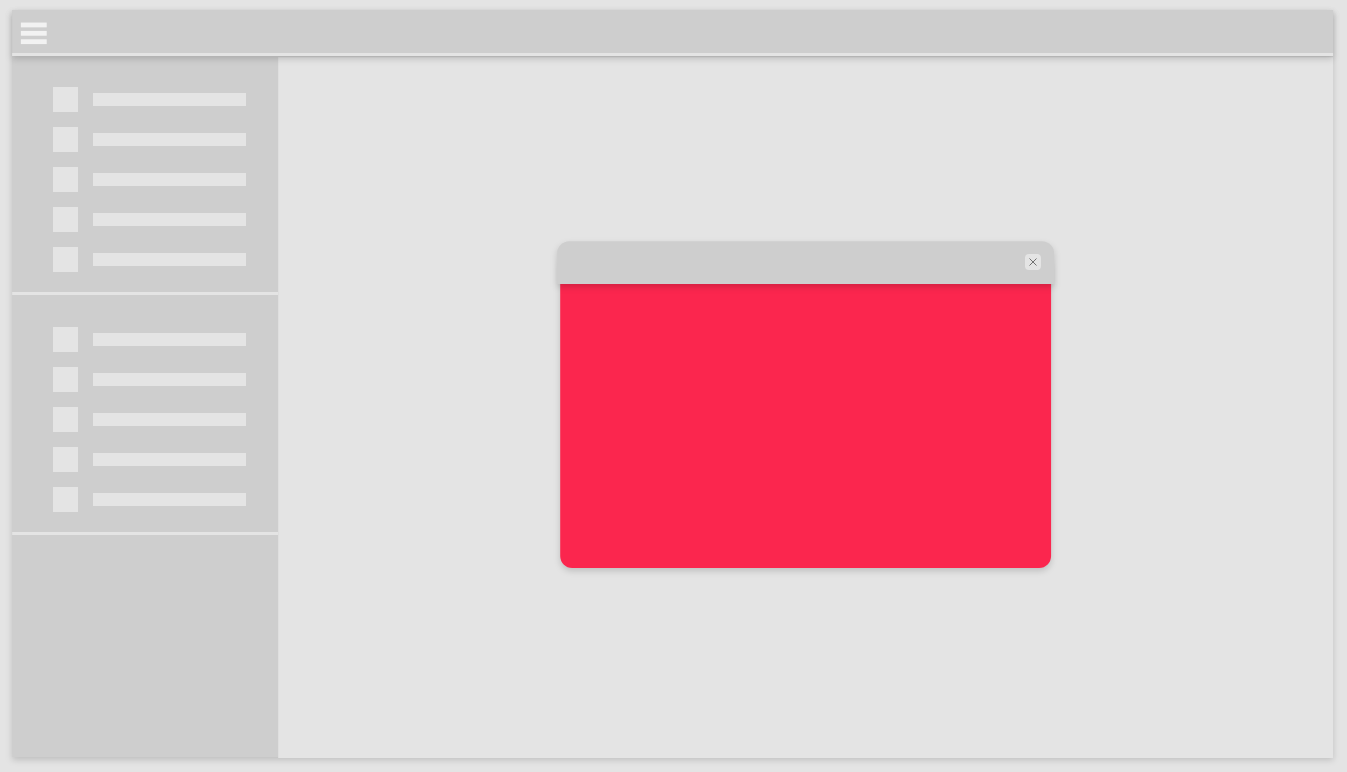

DialogBGColor	Background color of dialogue windows.	Color		rgb(239, 239, 239)

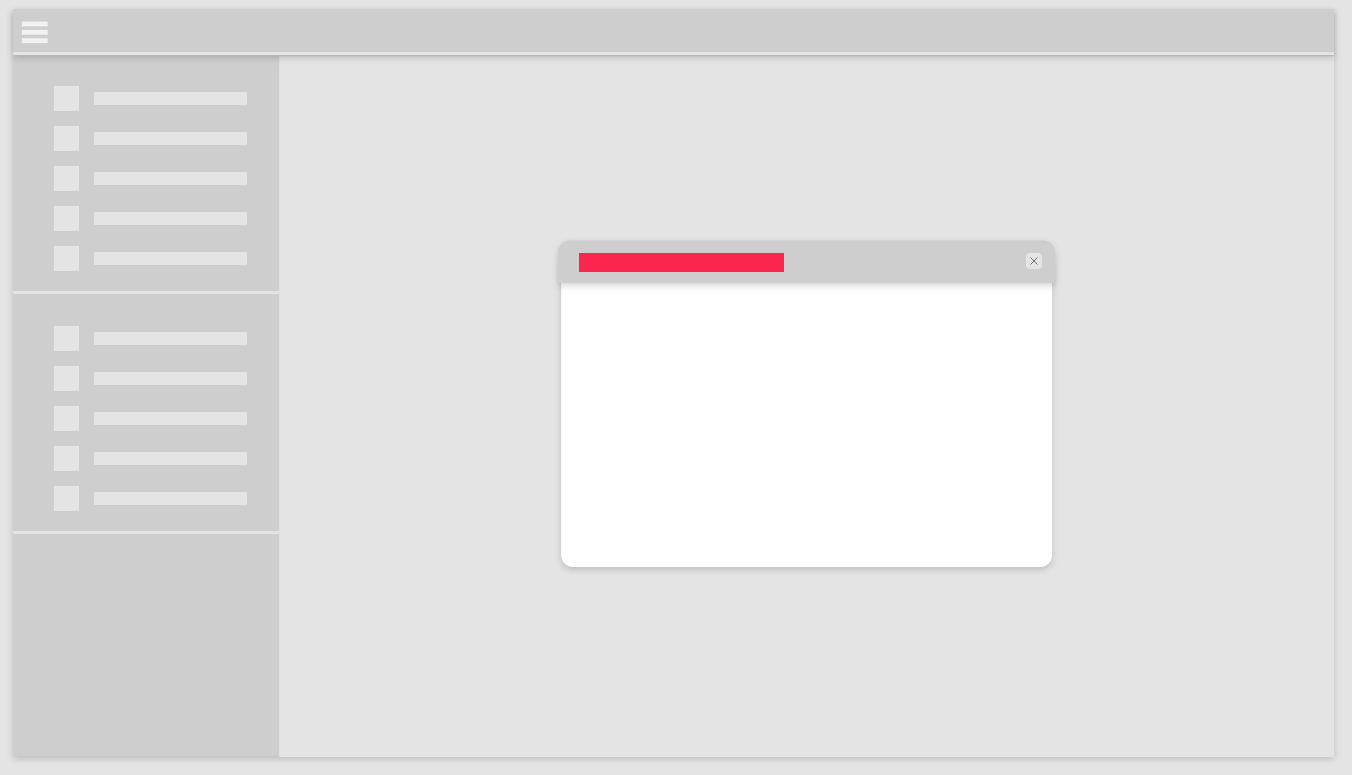

DialogColor	Text color of the heading in dialogue windows.	Color		rgba(248, 248, 248, 0.8)

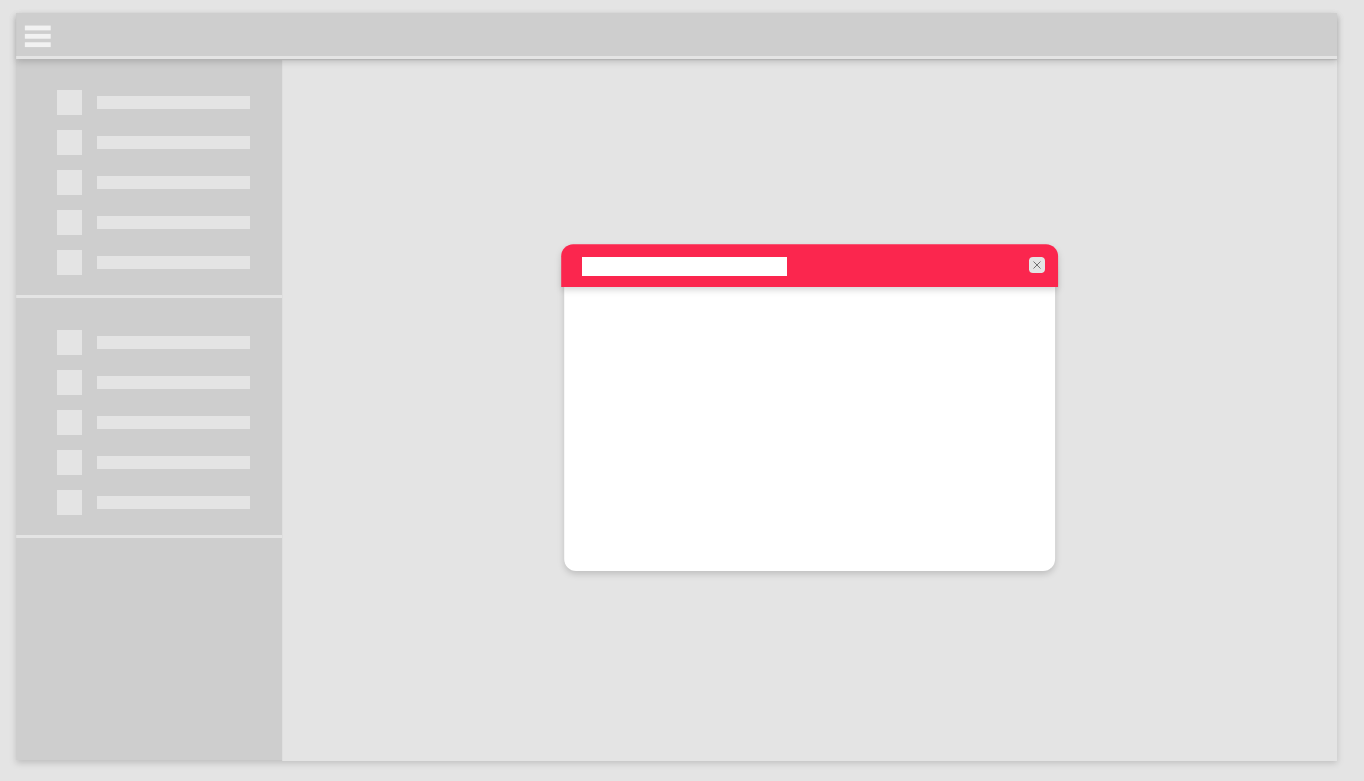

DialogHeaderBGColor	Background color of dialogue headers.	Color		#333C4D
FontMainWeight	Weight of text elements in top navigation menu.	Weight		400
FontSecWeight	Weight of text elements in side navigation menu.	Weight		300
HeaderHeight	Height of top navigation menu.	Size		70px
Icons	Enables or disables icons in the side navigation menu.	Toggle		Enabled

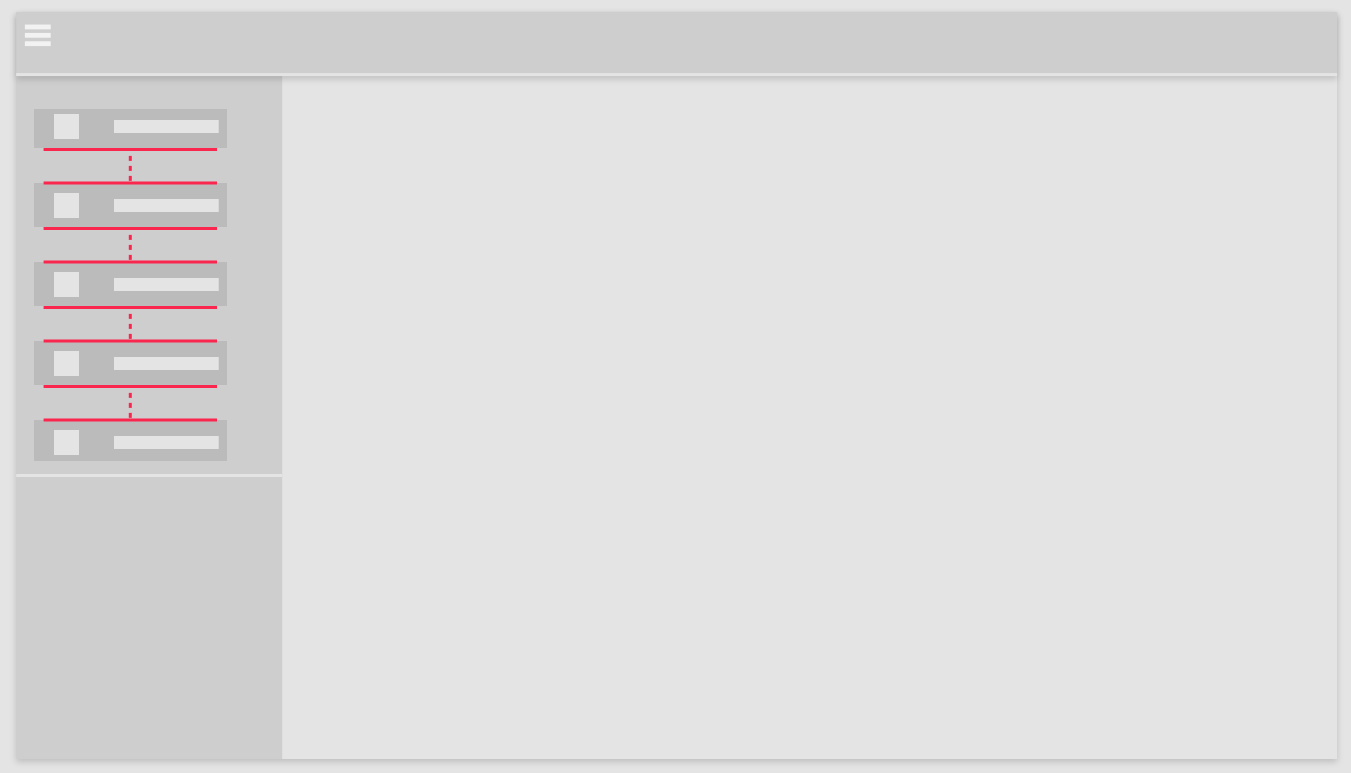

ItemSpacing	Spacing between elements in the side navigation menu.	Size		0px
LargeFont	Text size of large elements in the side navigation menu.	Text		10pt

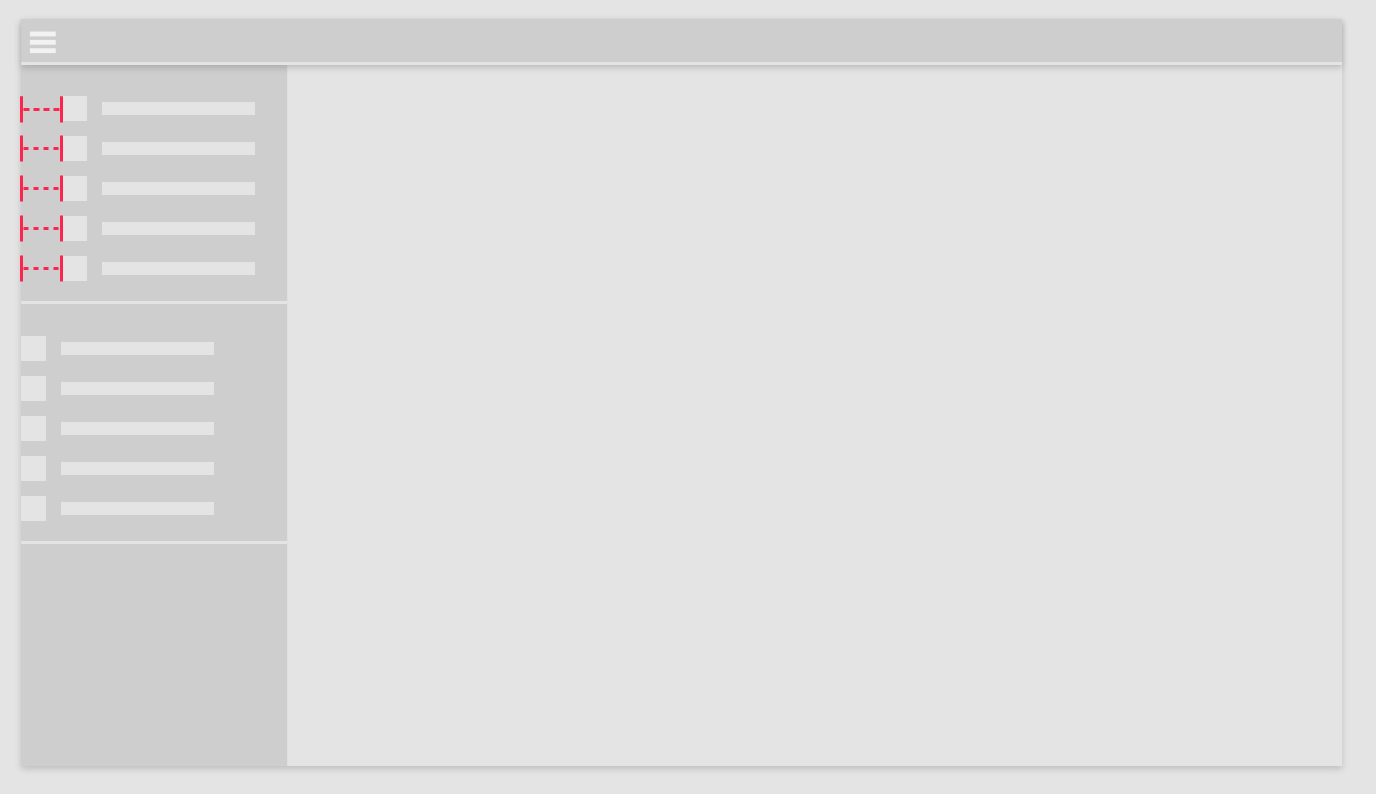

LargeIndentPadding	Padding distance for large size elements in side navigation menu.	Size		15px

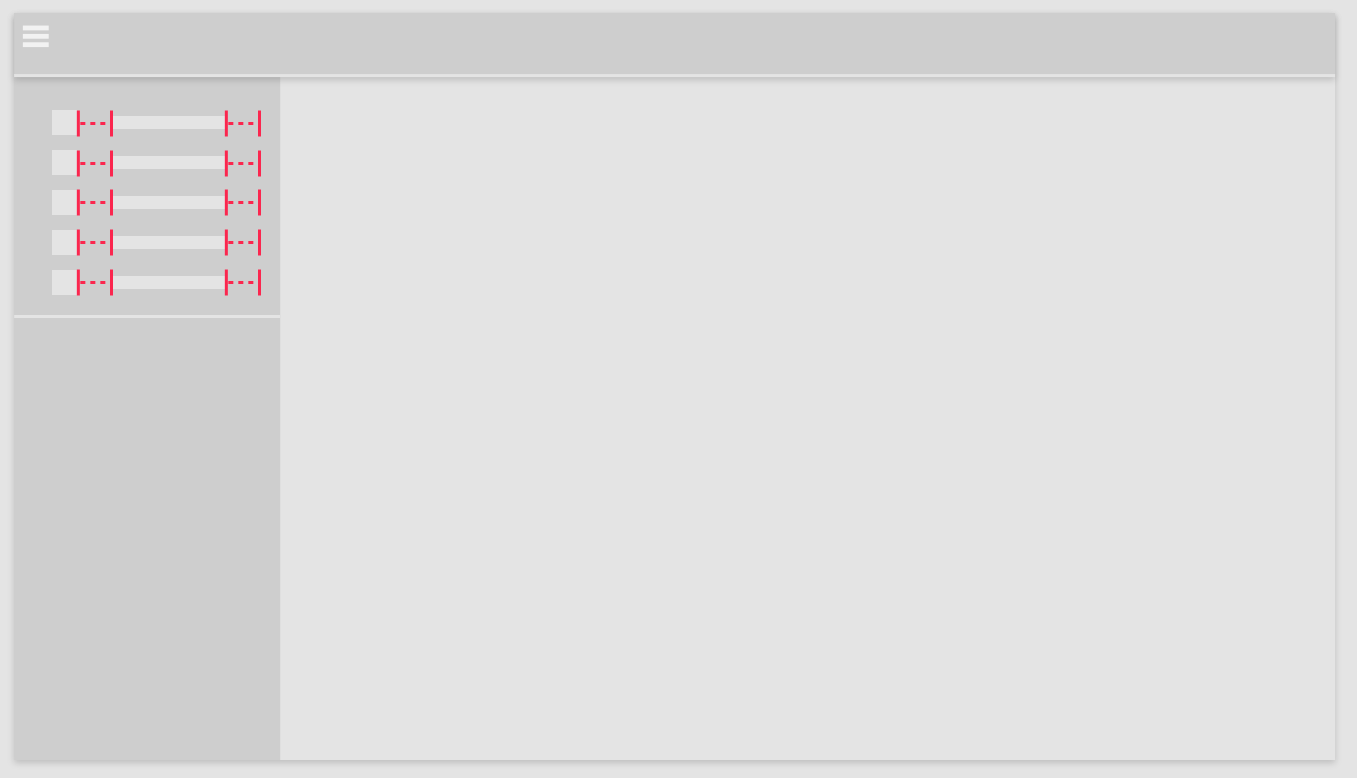

LargeSidePadding	Padding distance for large text elements in the side navigation menu.	Size		15px
LargeSize	Height of large sized elements in the side navigation menu.	Size		60px
LargeTBPadding	Modifies the top and bottom padding of large menu elements.	Size	(We do not recommend changing this parameter)	15px

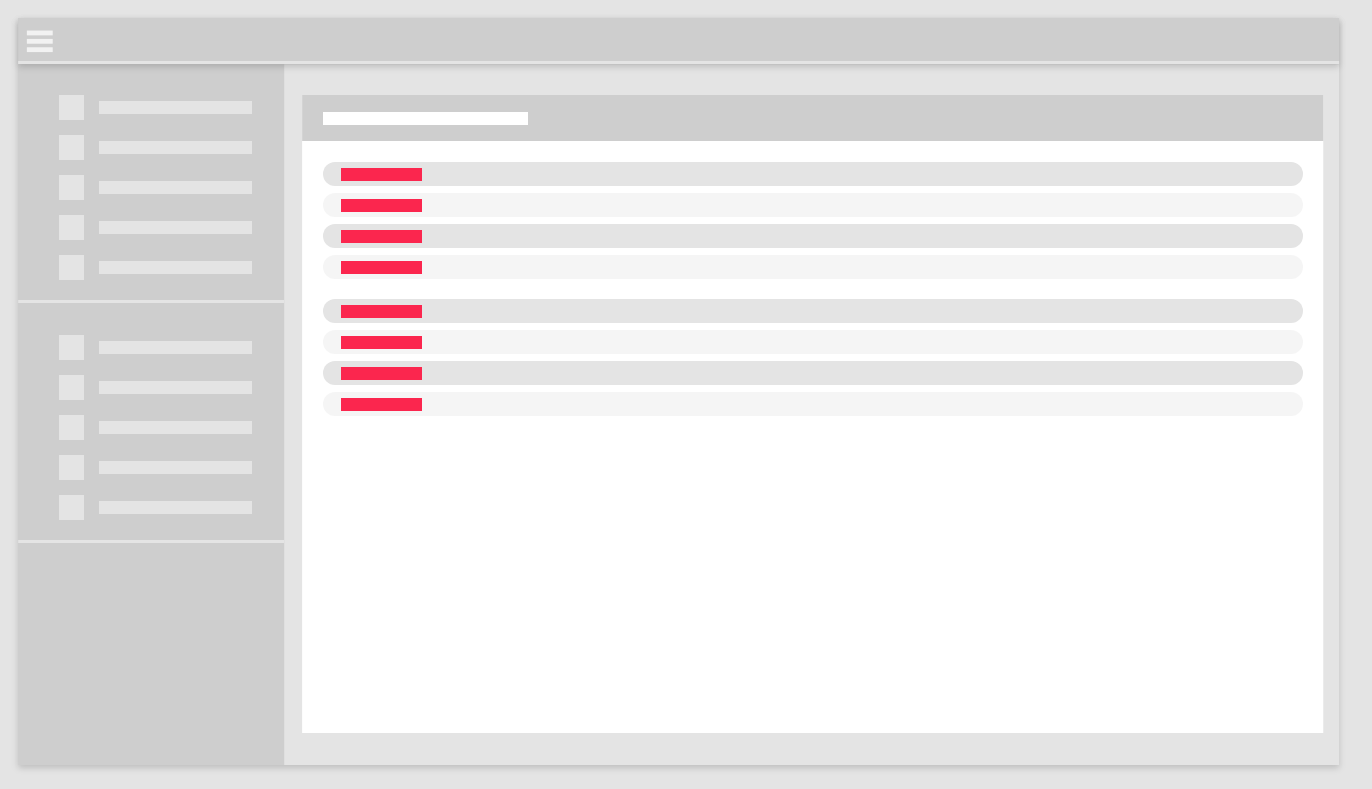

LinkColor	Color of text links.	Color		#006bb6

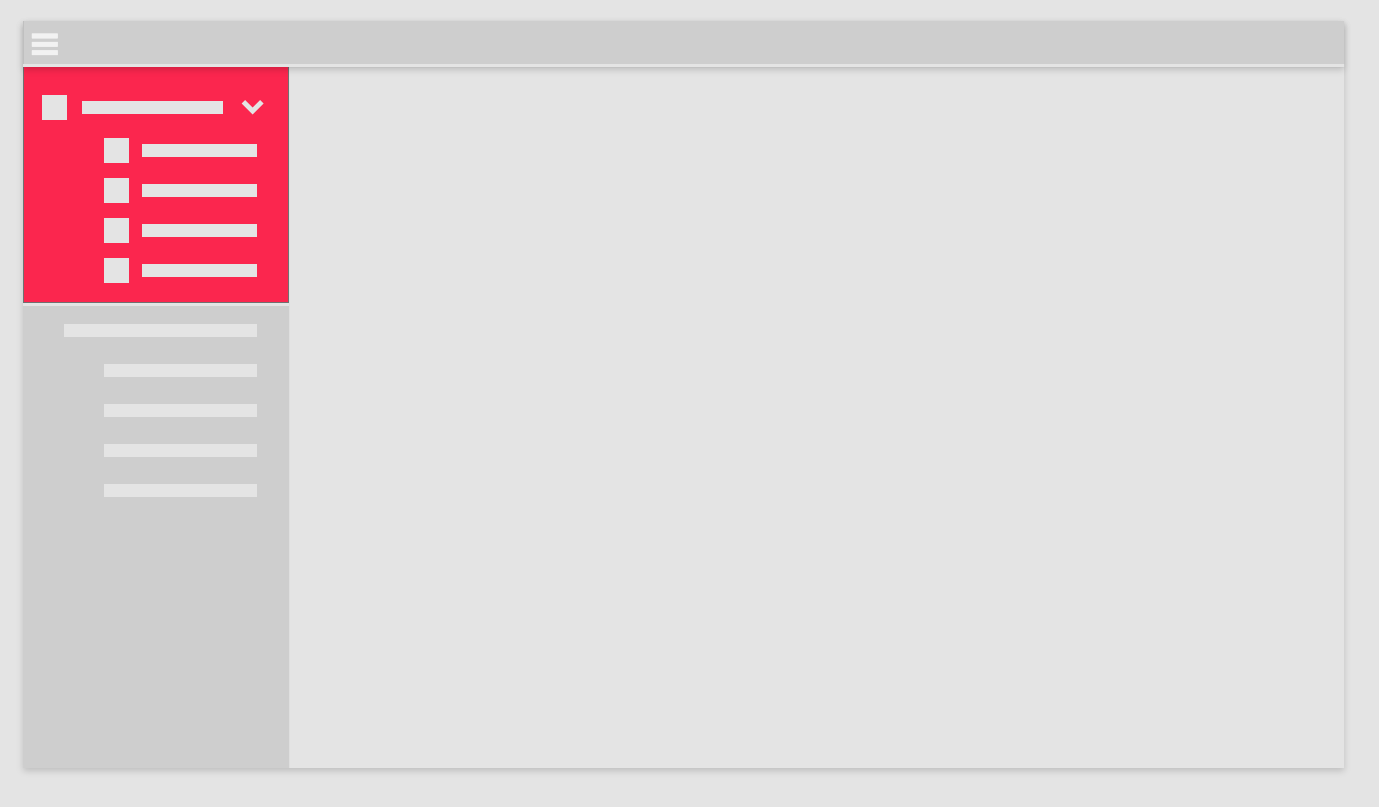

MainActiveColor	Background color for expanded sections in the side navigation menu.	Color		rgba(28, 28, 28, 0.3)

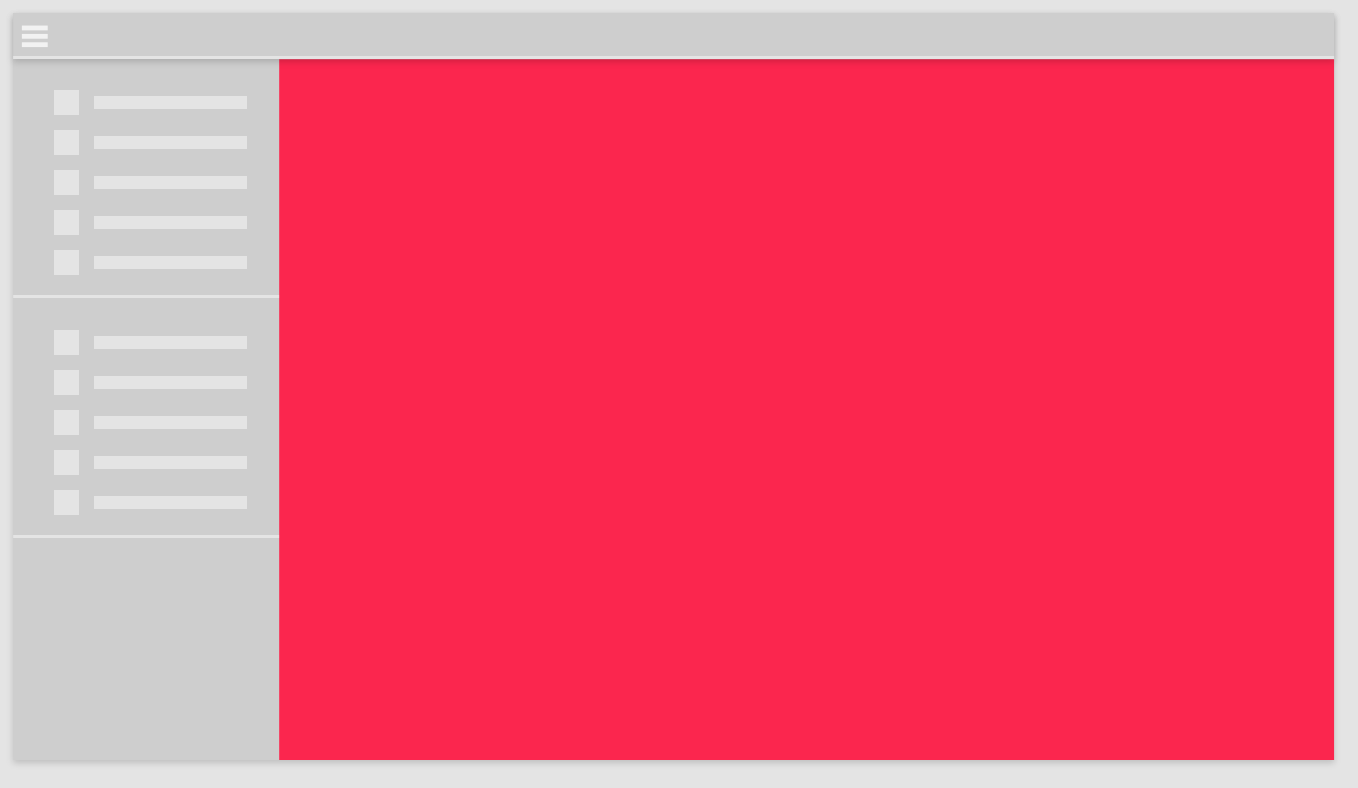

MainBGColor	Primary background color for Highstage content view.	Color		rgb(239, 239, 239)

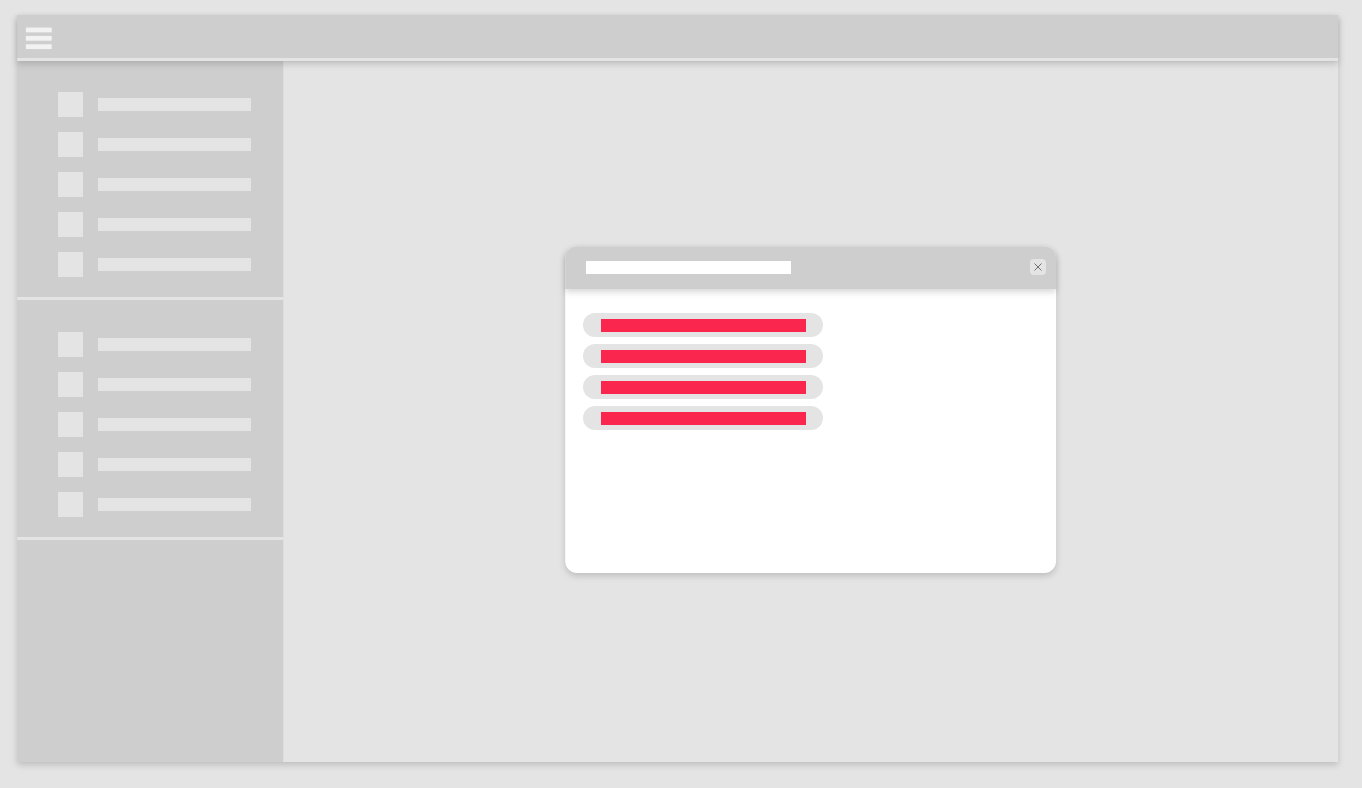

MainColor	Text color in dialogue windows.	Color		black

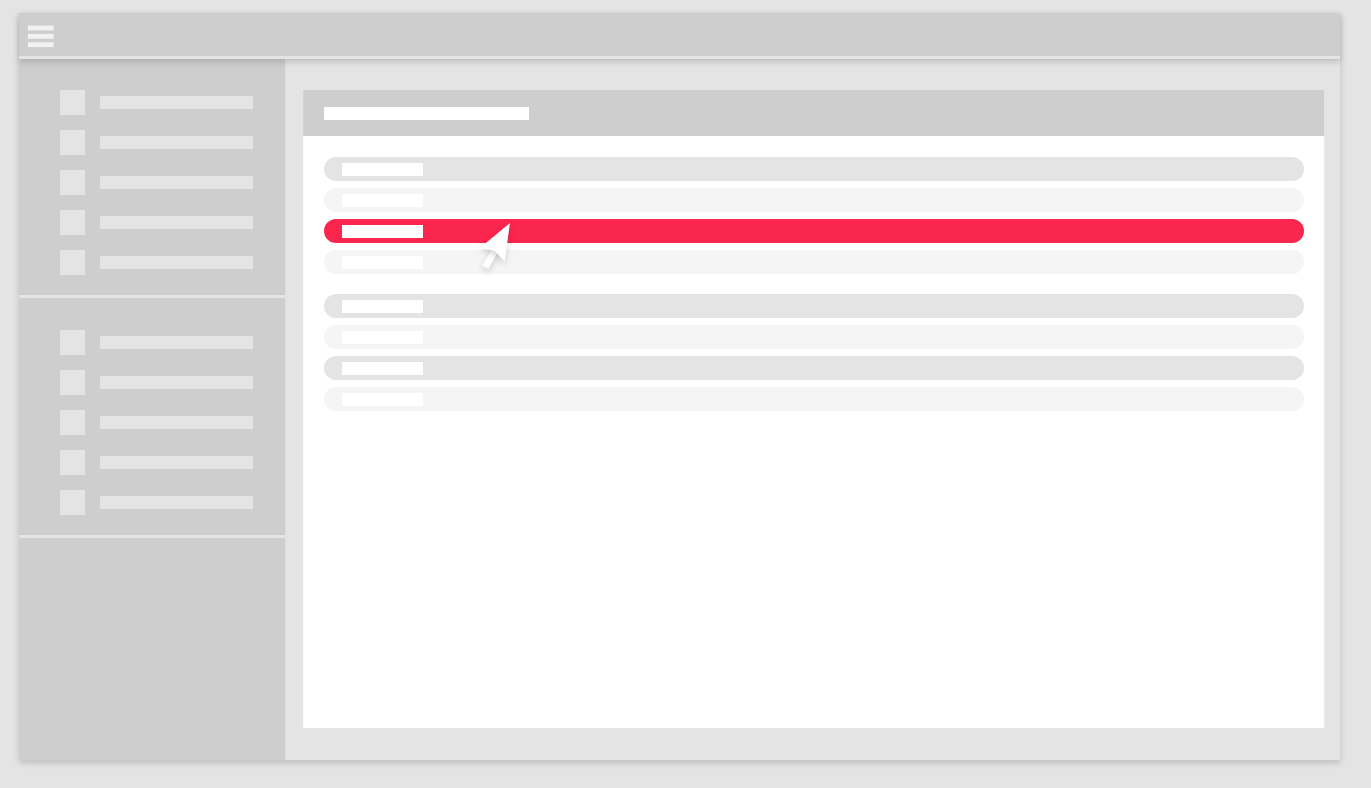

MainHoverColor	Background color on elements in search pages when hovered over.	Color		rgba(28, 28, 28, 0.2)
MediumFont	Text size of header and medium size menu elements.	Text		10pt
MediumIndentPadding	Padding distance for medium size elements in side navigation menu.	Size		15pt
MediumSidePadding	Padding distance for text elements in the header and for medium text elements in the side navigation menu.	Size		15pt
MediumSize	Height of medium sized elements in the side navigation menu.	Size		40px
MediumTBPadding	Modifies the top and bottom padding of medium menu elements.	Size	(We do not recommend changing this parameter)	5px

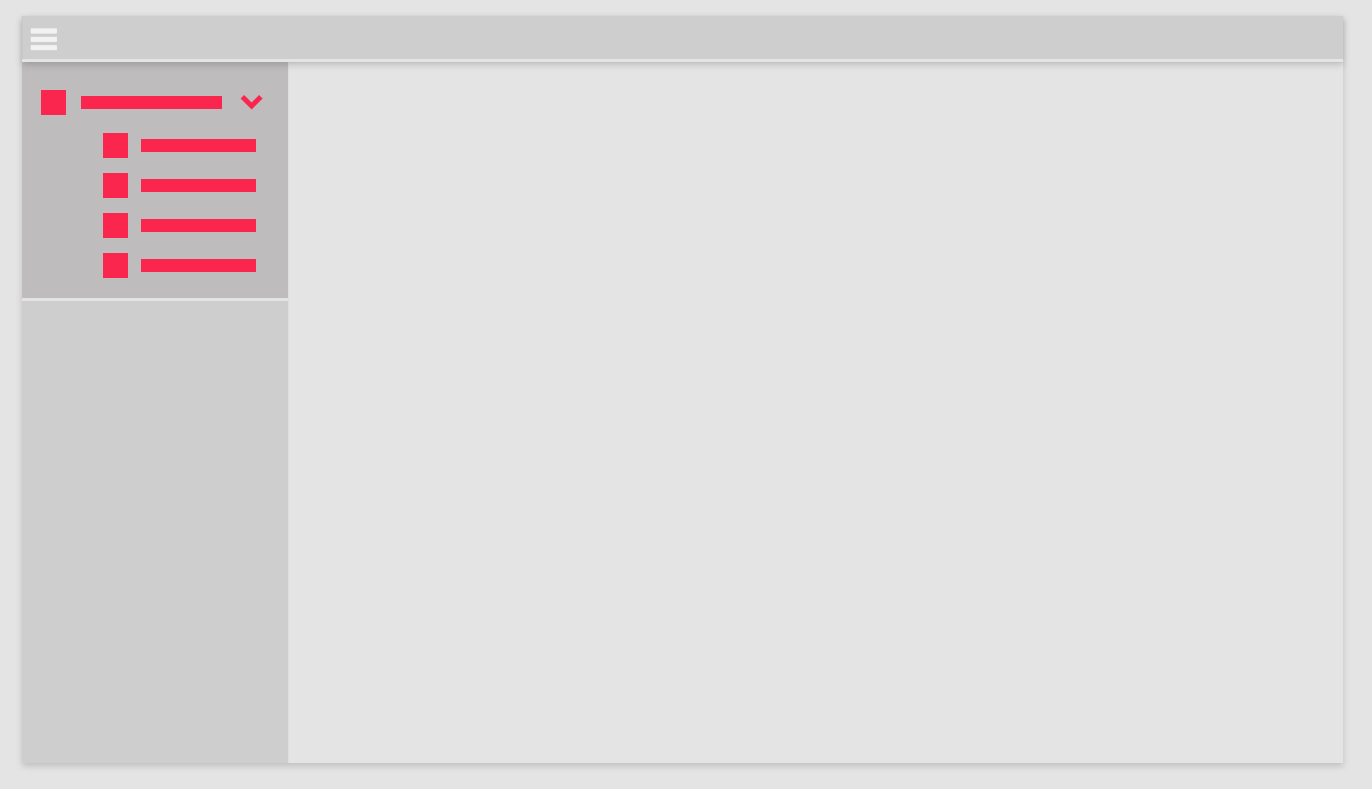

SecActiveColor	Color of the elements (including icons, text and arrows) within an expanded section in the side navigation menu.	Color		rgba(255, 255, 255, 0.8)

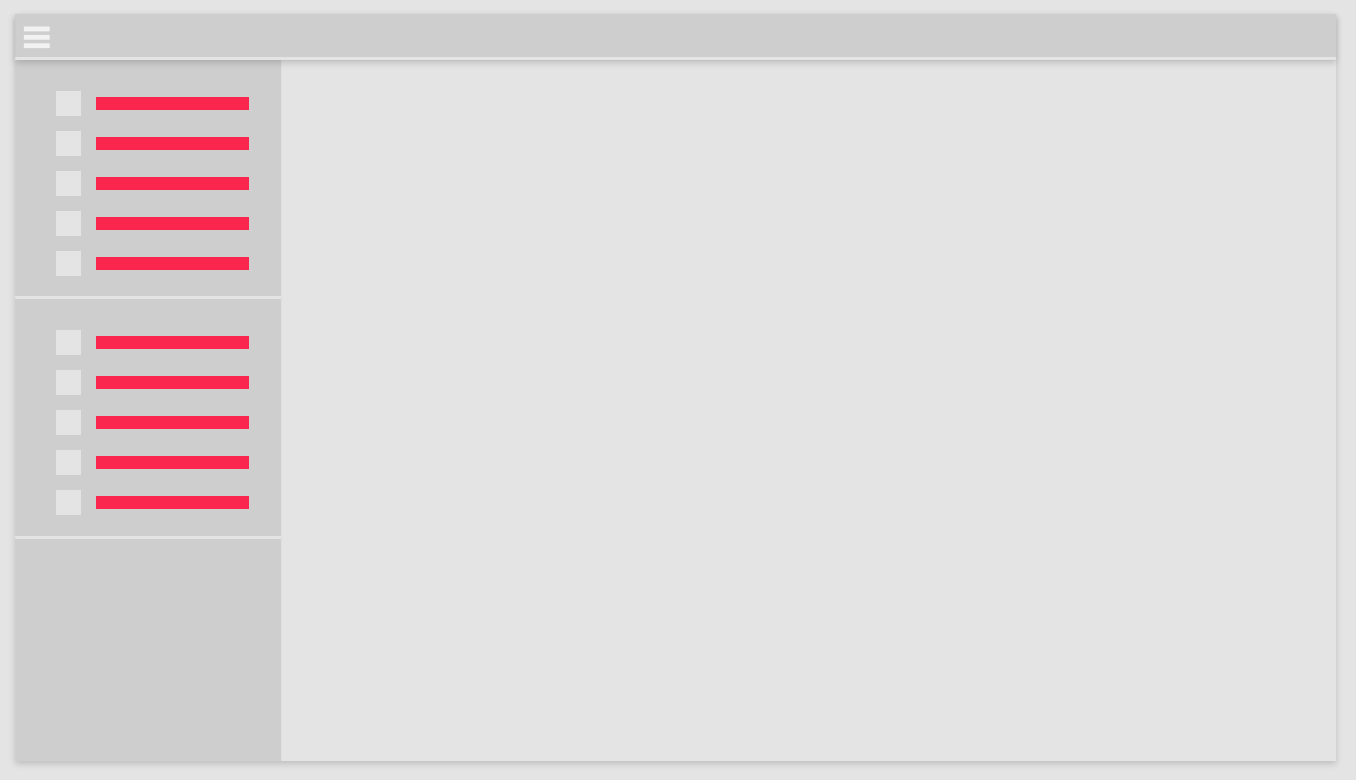

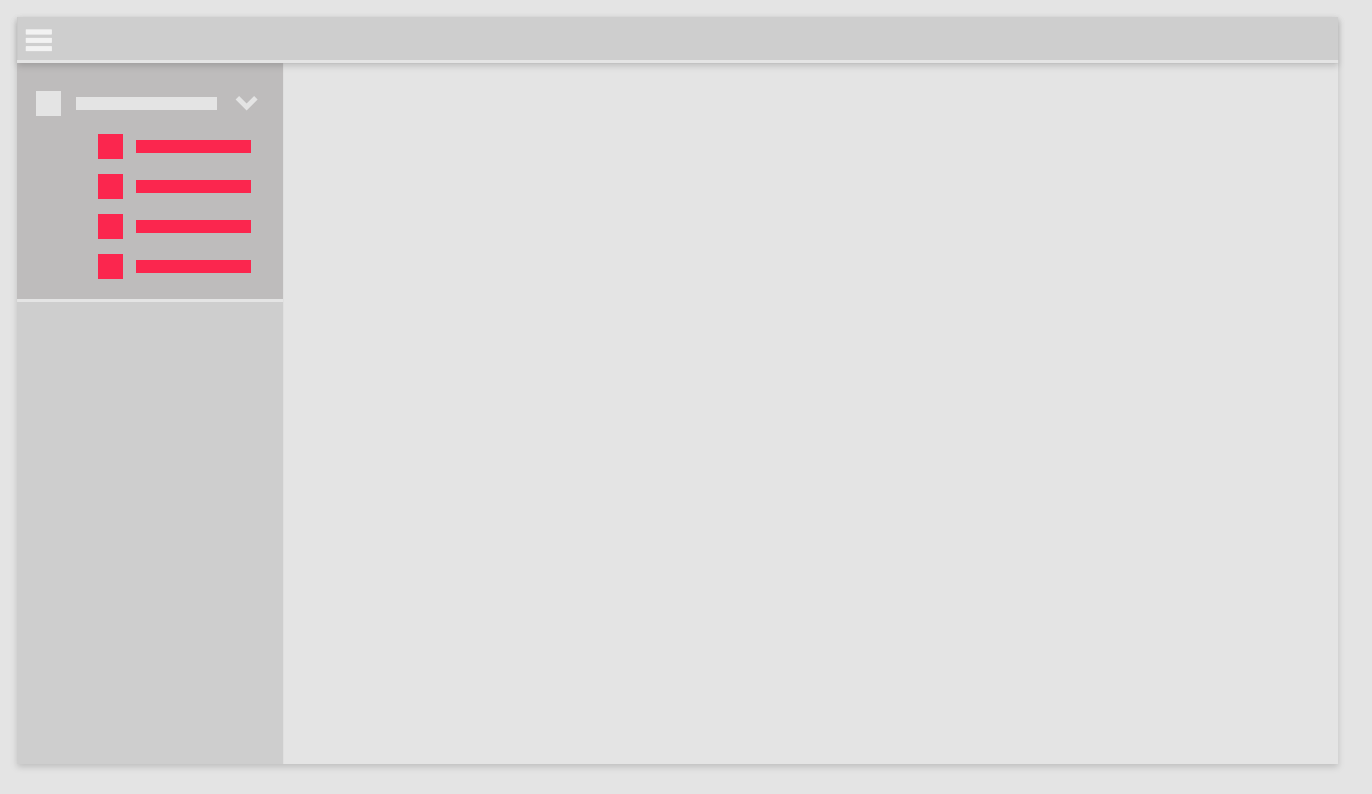

SecColor	Default color of elements (Icons, text and arrows) in the side navigation menu.	Color		rgba(255, 255, 255, 0.8)

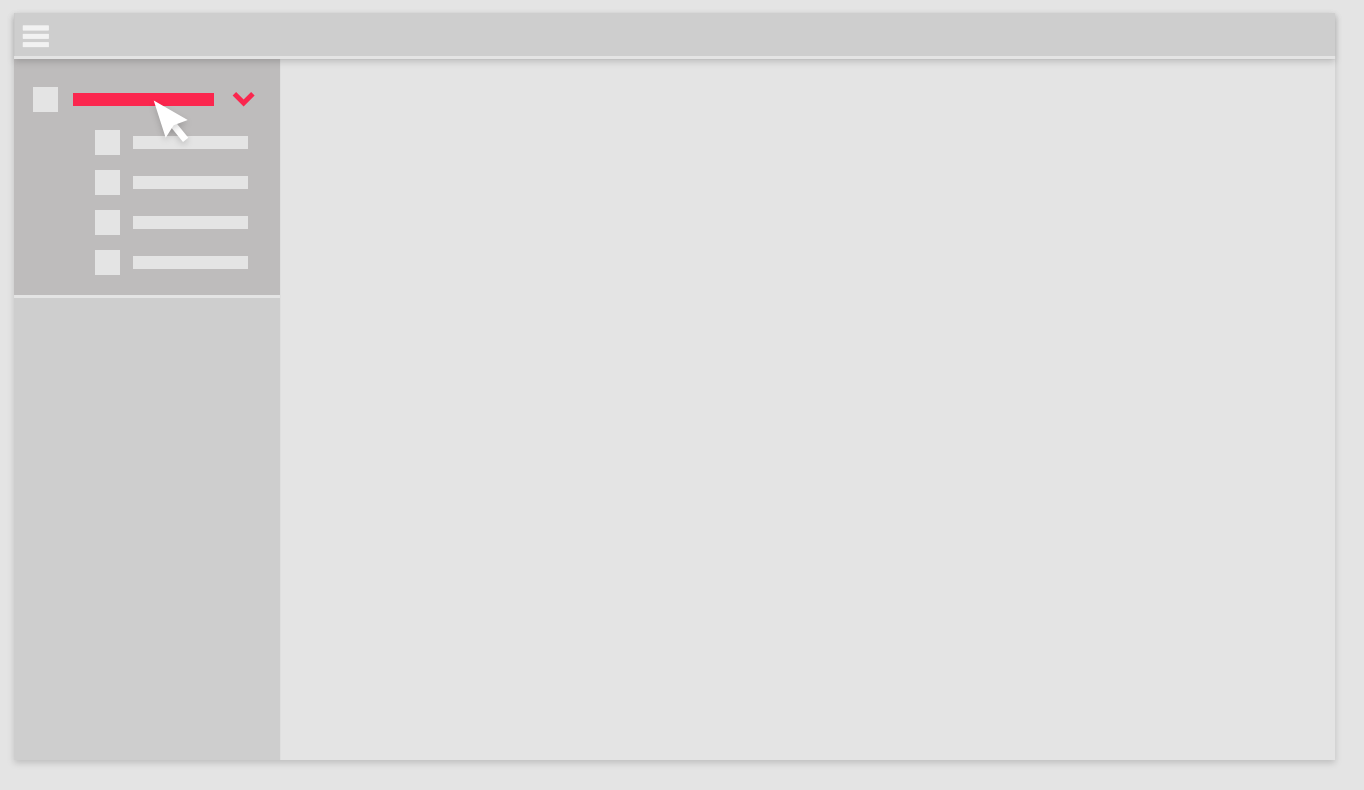

SecHoverColor	Color on all elements (text and arrow) when hovered over in the side navigation menu.	Color		rgba(255, 255, 255, 0.8)

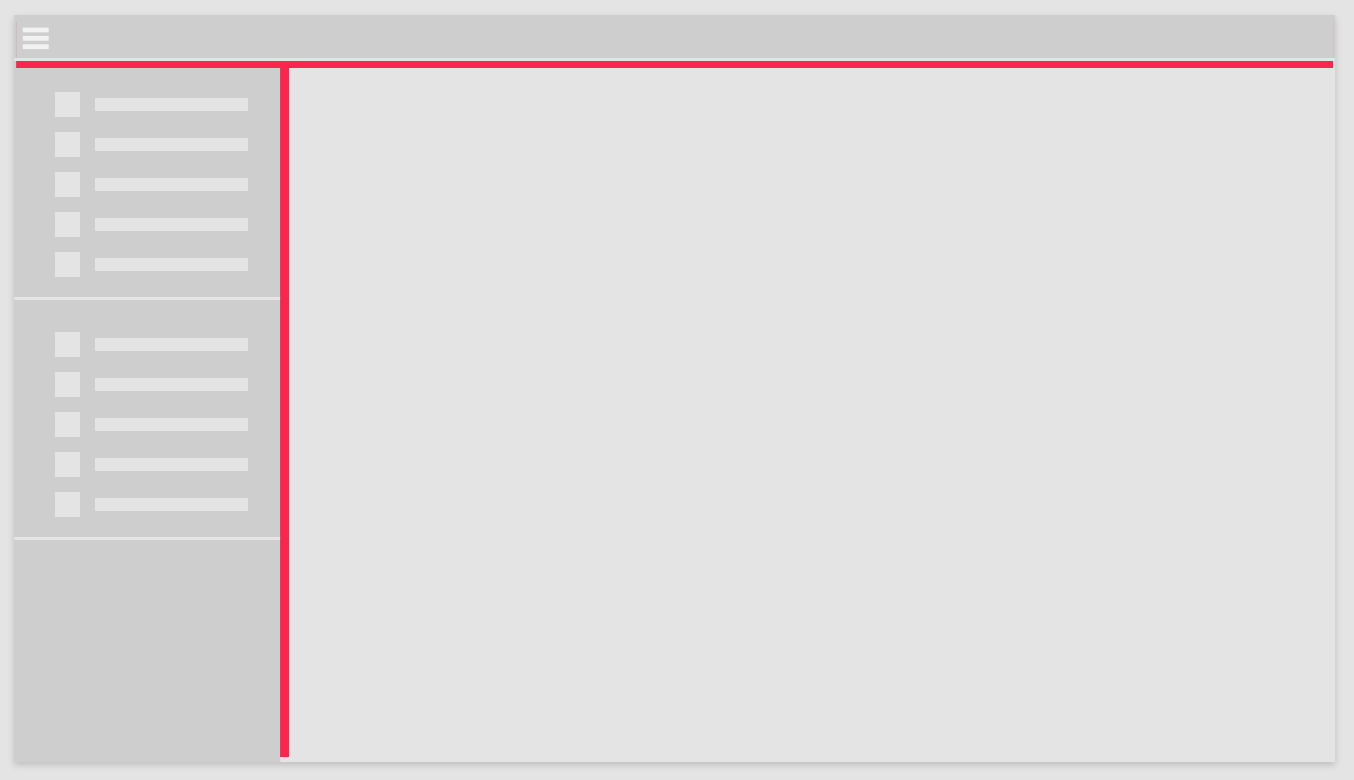

Shadow	Shadow of the top and side navigation menu.	Shadow		0 4px 5px 0 rgba(0,0,0,0.14), 0 1px 10px 0 rgba(0,0,0,0.12), 0 2px 4px -1px rgba(0,0,0,0.3)

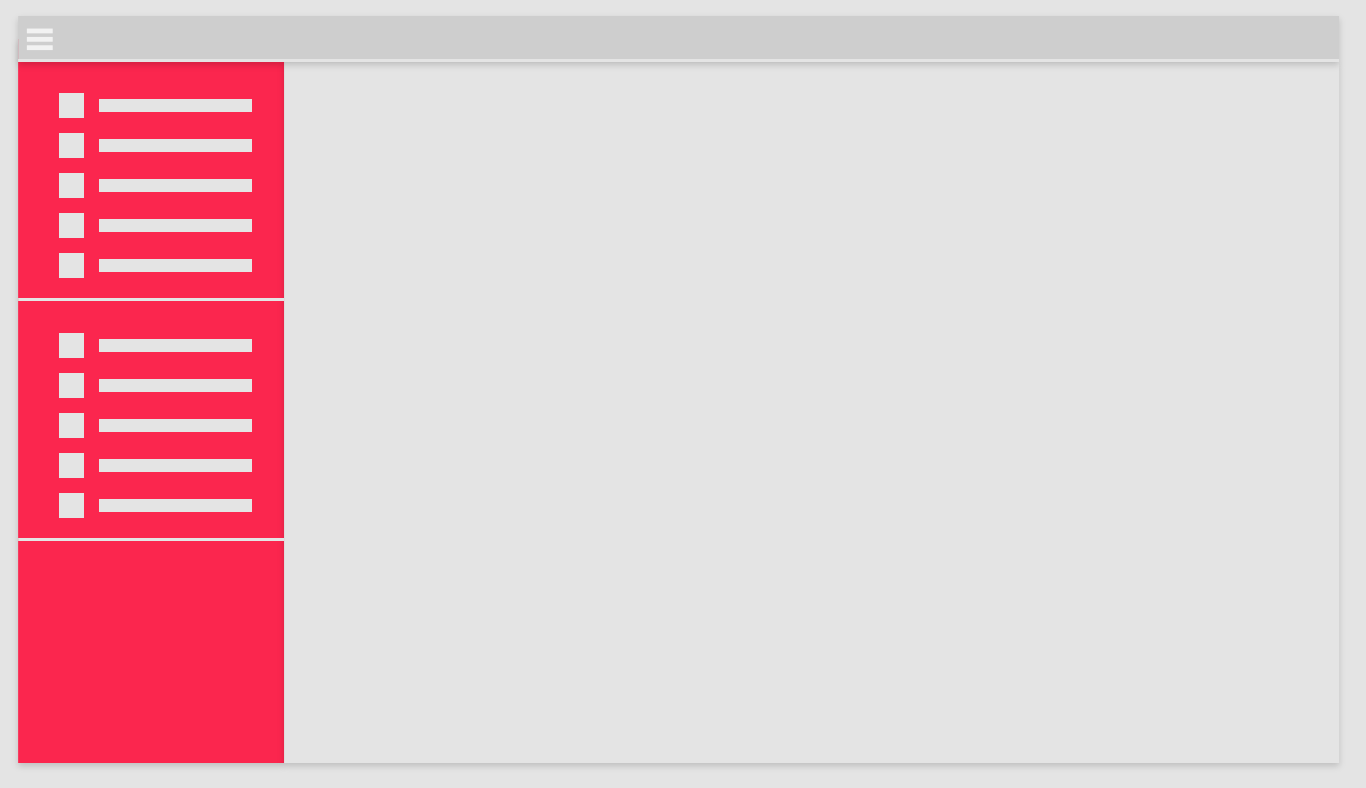

SidemenuBGColor	Default background color of the side navigation menu	Color		#002850

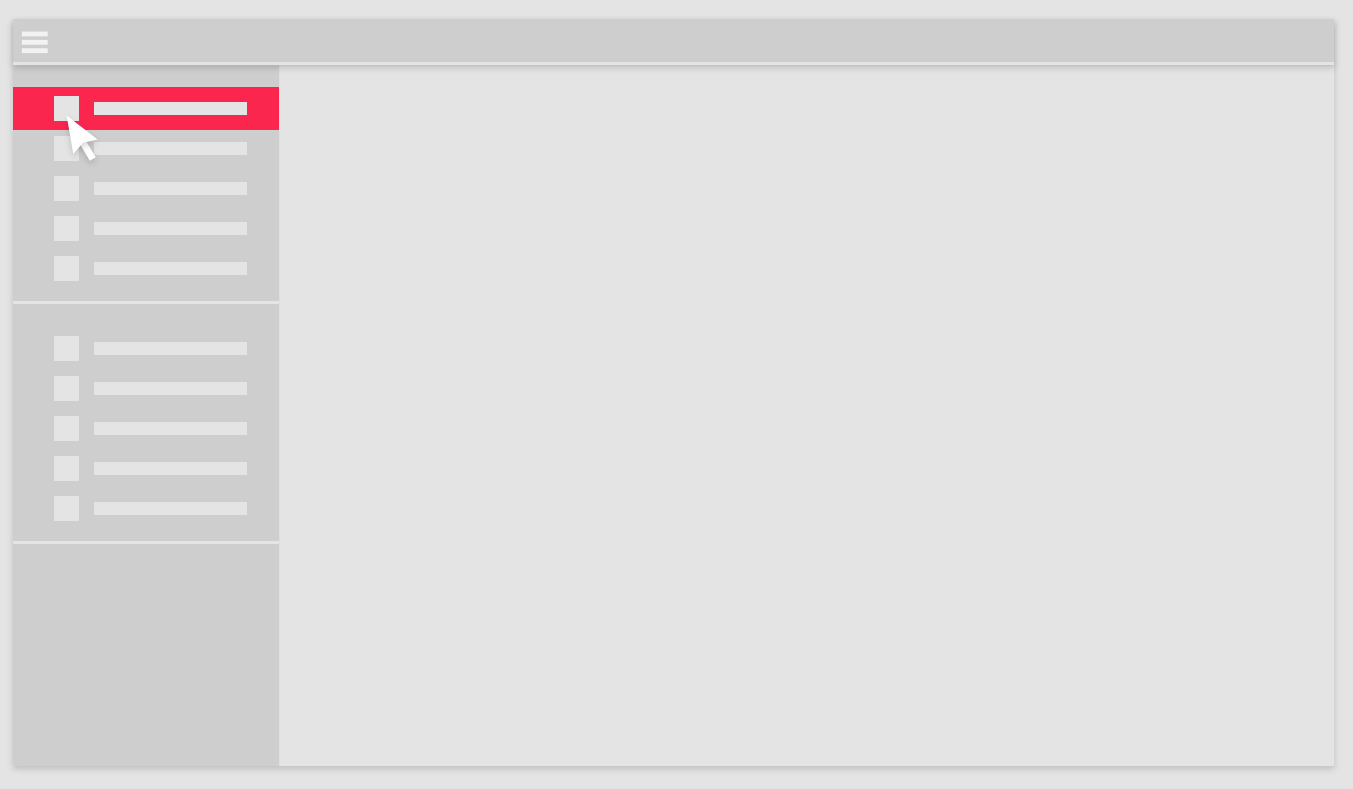

SidemenuBGHoverColor	Background color on elements in the side navigation menu when hovered over.	Color		rgba(28, 28, 28, 0.8)
SidemenuExclusive	Enable or disable whether only one section can be open at a time. Other sections are automatically closed if enabled.	Toggle	Illustration not available	Disabled
SidemenuWidth	Defines the width of the side navigation menu.	Size		350px
SmallFont	Text size of small elements in the side navigation menu.	Text		8pt
SmallIndentPadding	Padding distance for small size elements in side navigation menu.	Size		15px
SmallSidePadding	Padding distance for small text elements in the side navigation menu.	Size		15px
SmallSize	Height of small sized elements in the side navigation menu.	Size		30px
SmallTBPadding	Modifies the top and bottom padding of small menu elements.	Size	(We do not recommend changing this parameter)	9px
TextColor	Primary text color used throughout Highstage (links are treated separately).	Color		black

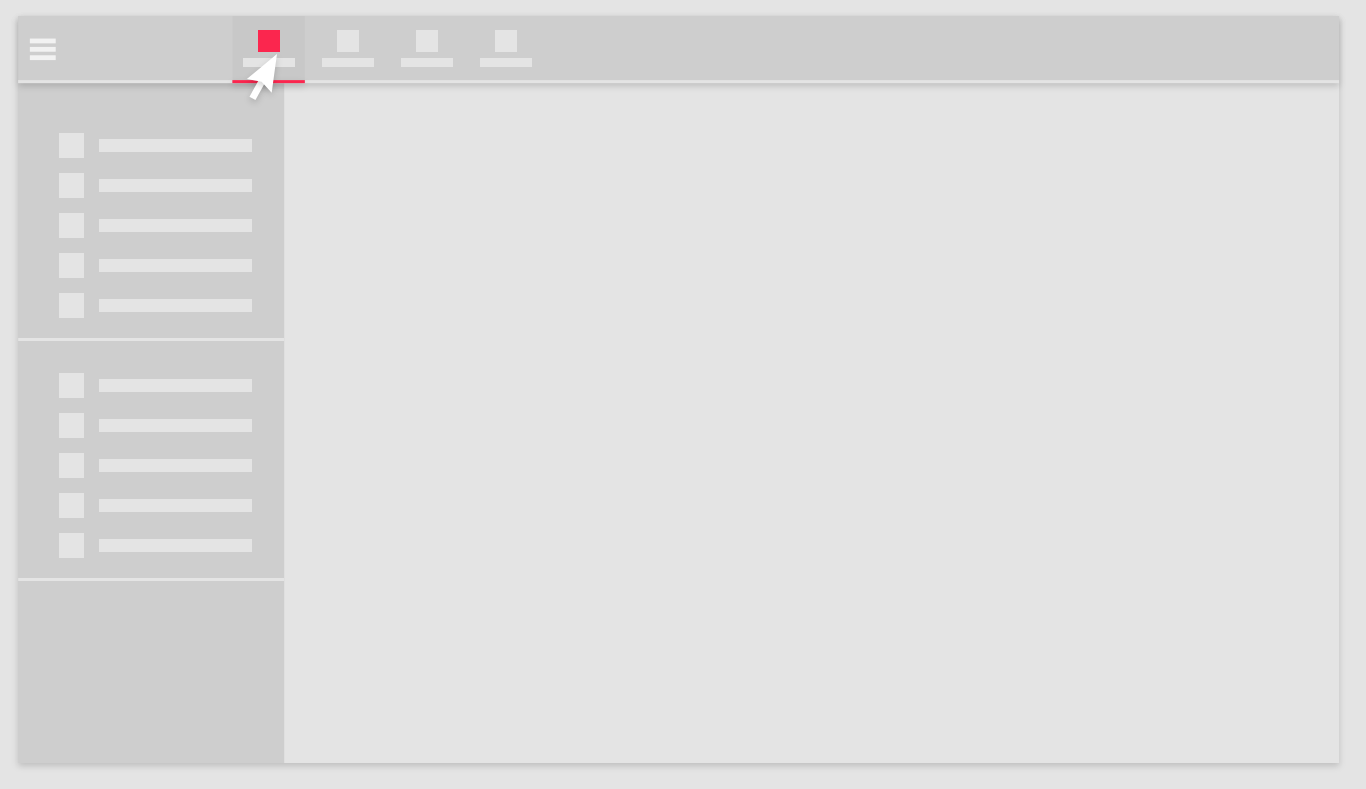

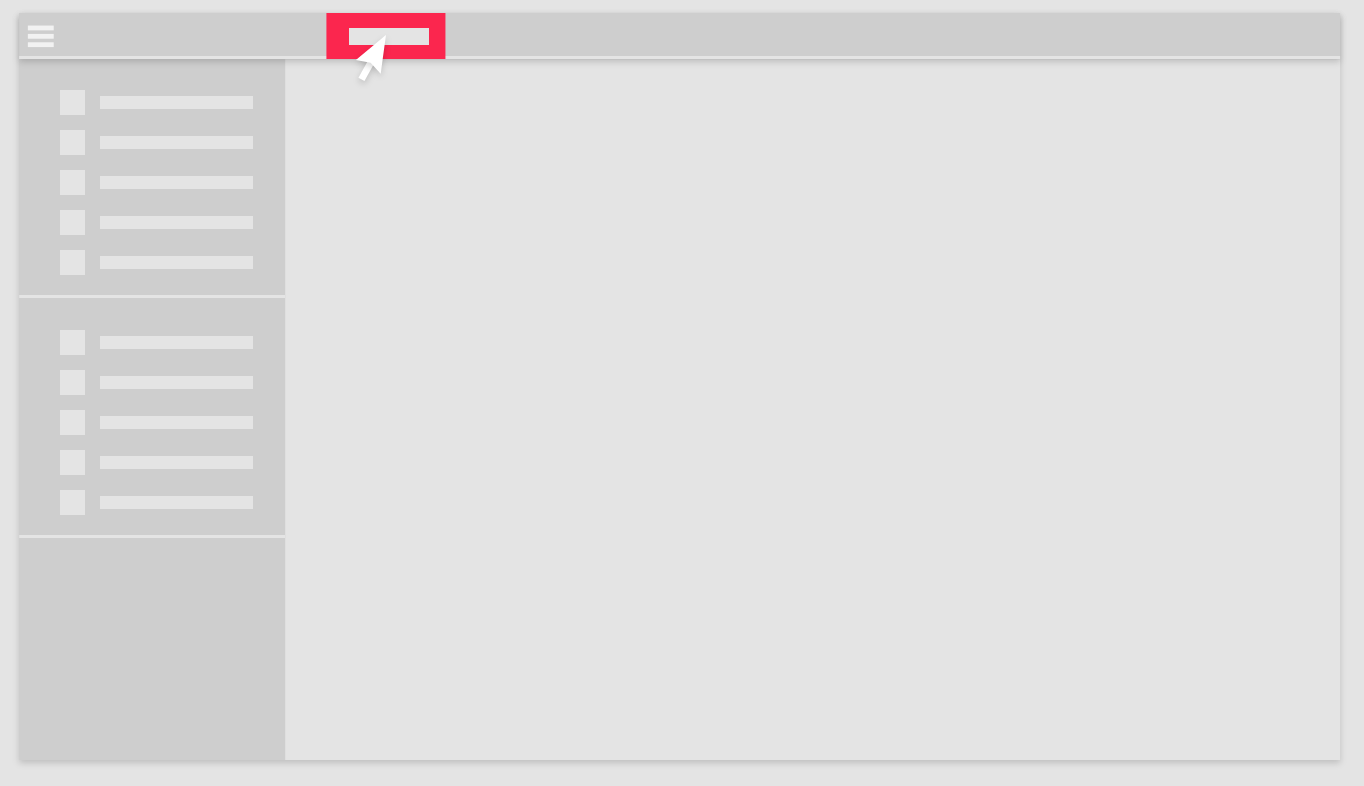

TopmenuActiveColor	Color of header element (Icon and text) when clicked.	Color		rgba(255, 255, 255, 0.8)

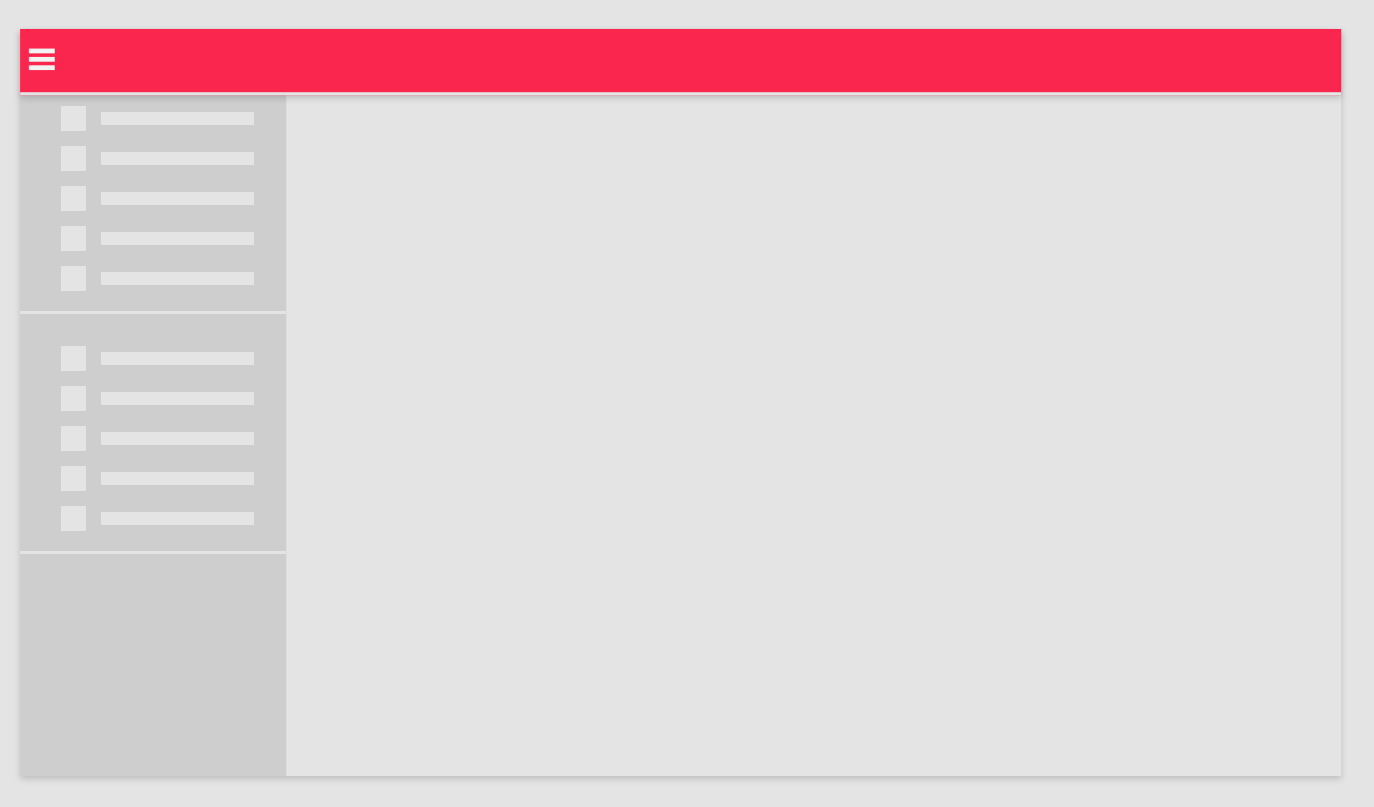

TopmenuBGColor	Primary color of the top navigation menu.	Color		#002850

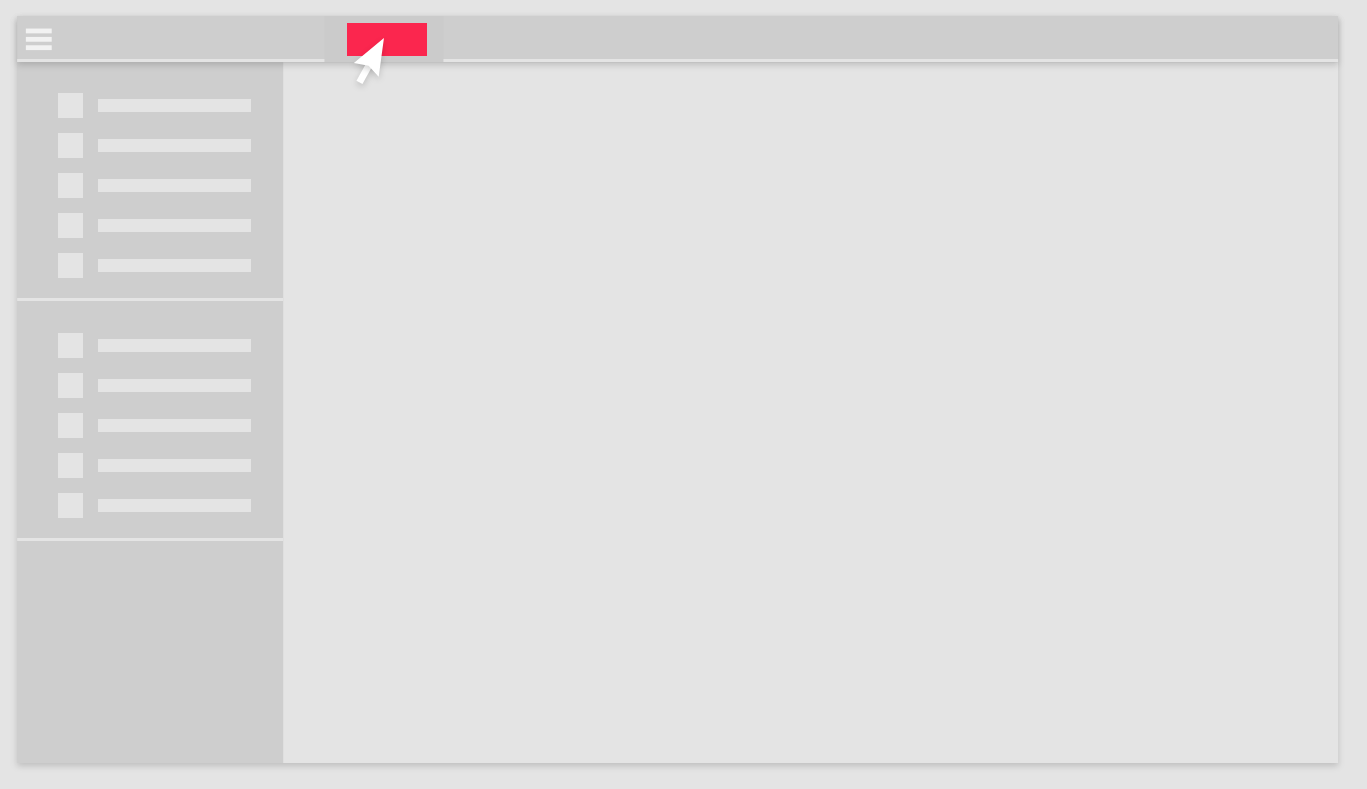

TopmenuBGHoverColor	Background color of element in top navigation menu when hovered.	Color		rgba(28, 28, 28, 0.8)

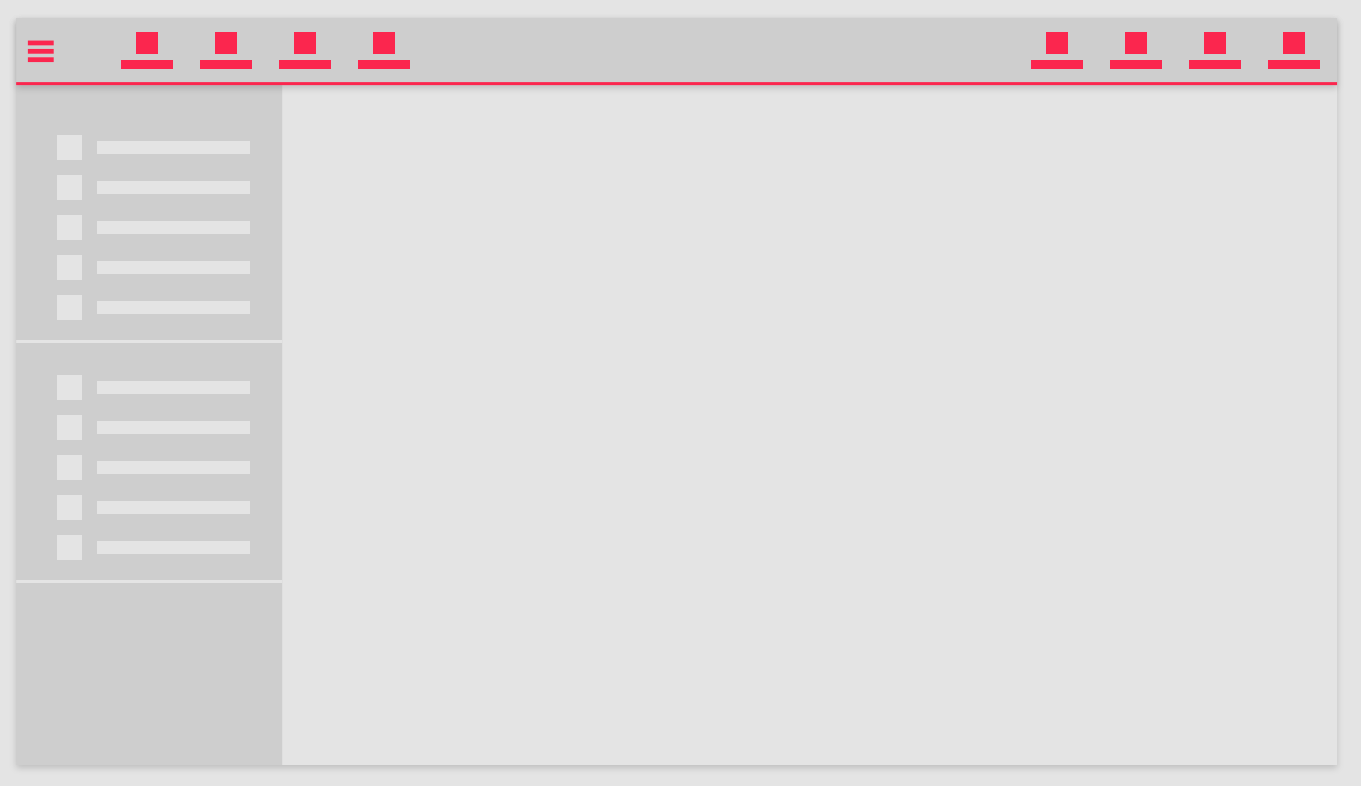

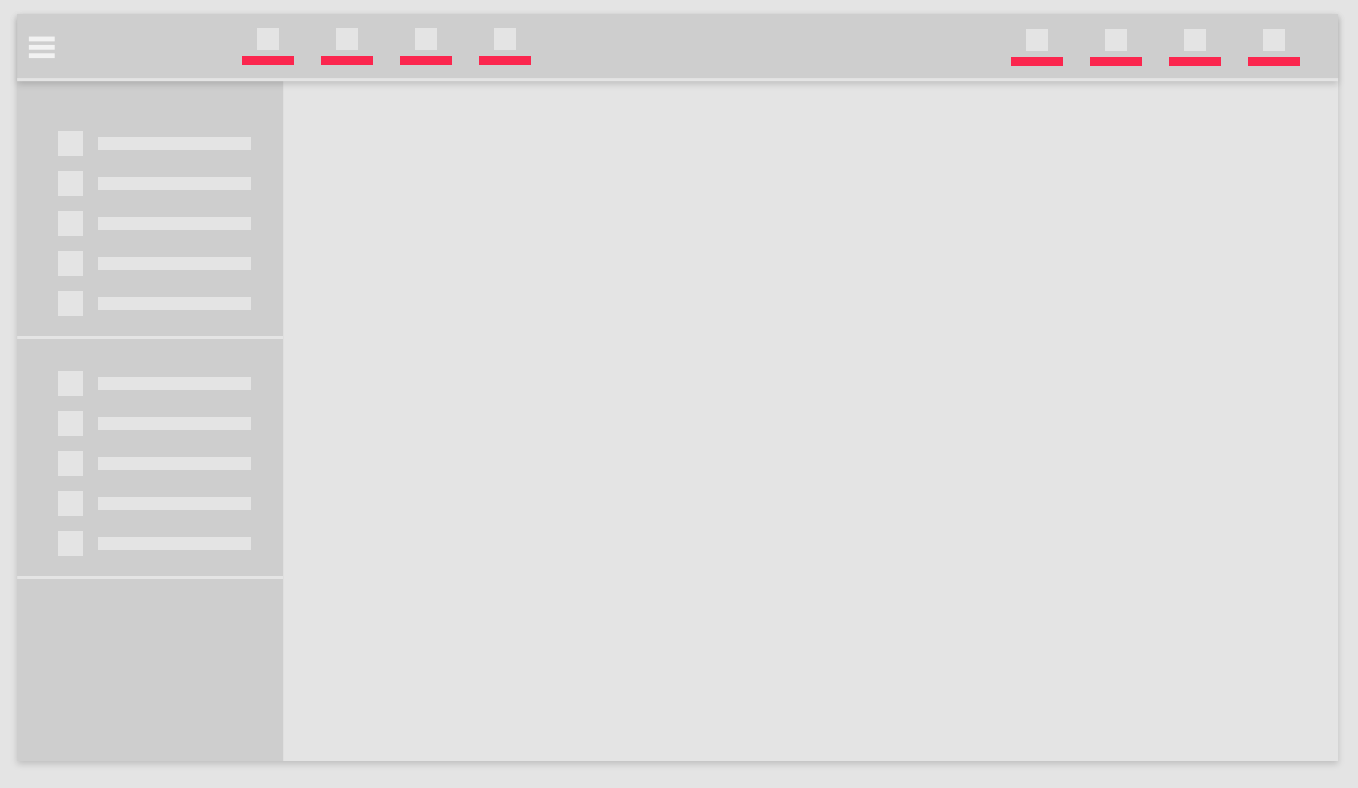

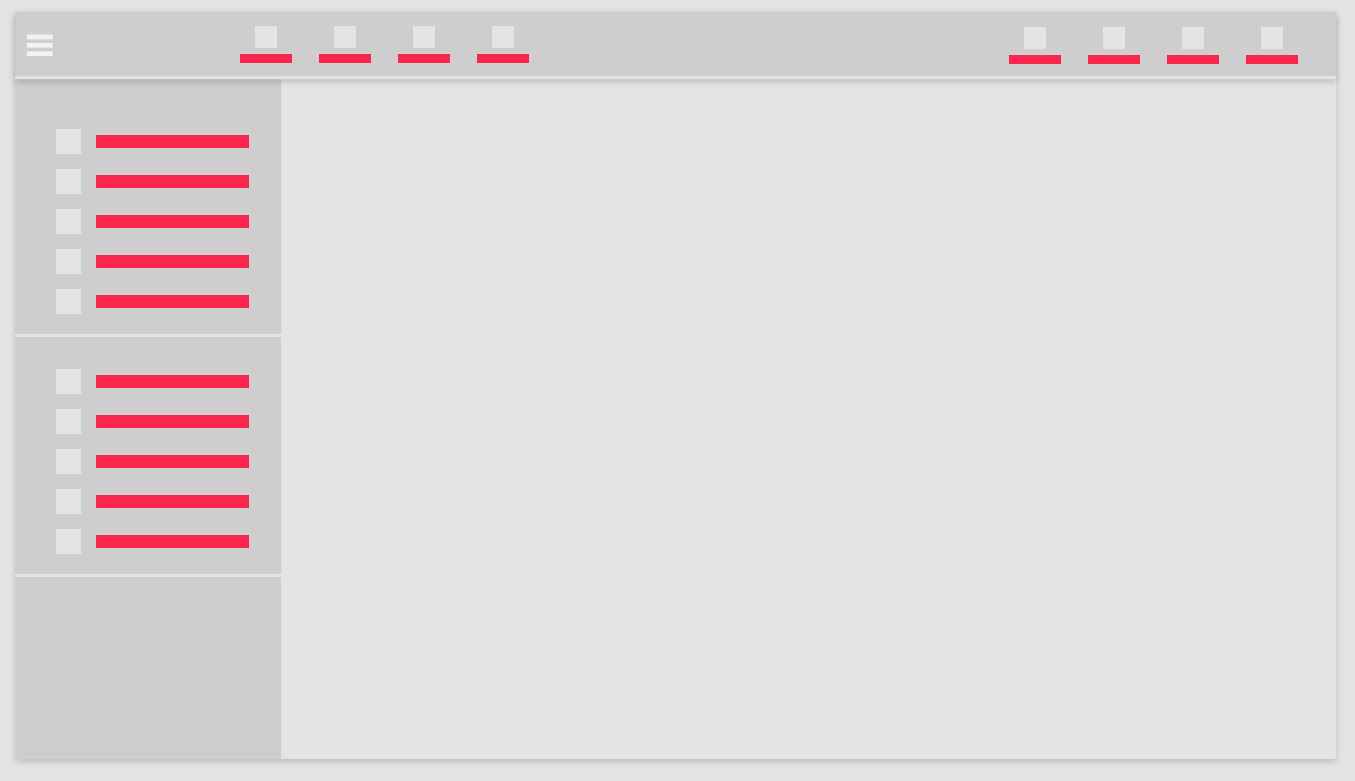

TopmenuColor	Color of elements (Accent line, hamburger- and menu elements) in the top navigation menu.	Color		rgba(255, 255, 255, 0.8)
TopmenuHoverColor	Color of header element (accent line and icon) when hovered.	Color		rgba(255, 255, 255, 0.8)
Transition	Transition effect on elements in the side-navigation menu.	Transition	Illustration not available	background .2s,color .2s
ActionStepActiveColor	Action Step Active Color is used for active step.	Color	Illustration not available	rgba(241,196,93,1)
ActionStepBounceColor	Action Step Bounce Color is used for steps.	Color	Illustration not available	#811a1a
ActionStepNormalColor	Action Step Normal Color is used for default step.	Color	Illustration not available	#385789
ActiveColor	Active Color is used to show case active elements.	Color	Illustration not available	#bbbbbb
ColorDefault	Default color is used to show case default elements.	Color	Illustration not available	#f6f6f6
ColorError	Error color is used to show case error elements.	Color	Illustration not available	#FF5A50
ColorInfo	Info color is used to show case Info elements.	Color	Illustration not available	#B4E1FF
ColorPrimary	Primary color is used to show case primary elements.	Color	Illustration not available	#007fff
ColorSuccess	Success color is used to show case success elements.	Color	Illustration not available	#82f0B4
Colorwarning	Warning color is used to show case warning elements.	Color	Illustration not available	#FFE678
InactiveColor	Inactive color is used to show case inactive elements.	Color	Illustration not available	#28a745
SearchHeaderBGcolor	Background color of search header.	Color	Illustration not available	#F0F0F0
SearchResultHoverColor	Hover color of search result.	Color	Illustration not available	rgba(133,162,212,0.5)
FieldHoverColor	Hover color of the field.	Color	Illustration not available	rgba(133,162,212,0.5)
FormColumnGap	Space on form column.	Space	Illustration not available	1rem
FormMinColumnWidth	Minimum width on form column.	Size	Illustration not available	600px
FormTitleBackgroundColor	Background color of form title.	Color	Illustration not available	#E0E1E2
FormTitleColor	Color used for form title.	Color	Illustration not available	rgba(0, 0, 0, 1)

Accepted parameter values

Highstage UI parameters make use of valid properties that belongs to CSS (Cascading Style Sheets) standards as supported values.

Through CSS syntax there are many different ways that colors, sizes, fonts and effects can be defined. For each parameter, we simply take advantage of existing CSS properties and allows you to define it's value in any way you want - in accordance with CSS standards.

Here, you will find a list of the different types of parameters that can be used to control the visual appearance of Highstage. Similarly, we introduce you to the wide range of permitted values that can be used in the different parameter types:

Colors

The Color parameters in Highstage accepts all legal color values that are available in CSS (Cascading Style Sheets) including Hexadecimal, RGB, RGBA, HSL, HSLA and predefined color names (red,green,blue etc.). Read more about available CSS colors on w3schools.

Color gradient transitions of two or more colors are also supported by the Color parameters. Read more about the available CSS gradients and syntax on w3schools.

Icons

The Icon parameters in Highstage accepts Solid and Regular styles of the icons made available by Font Awesome.

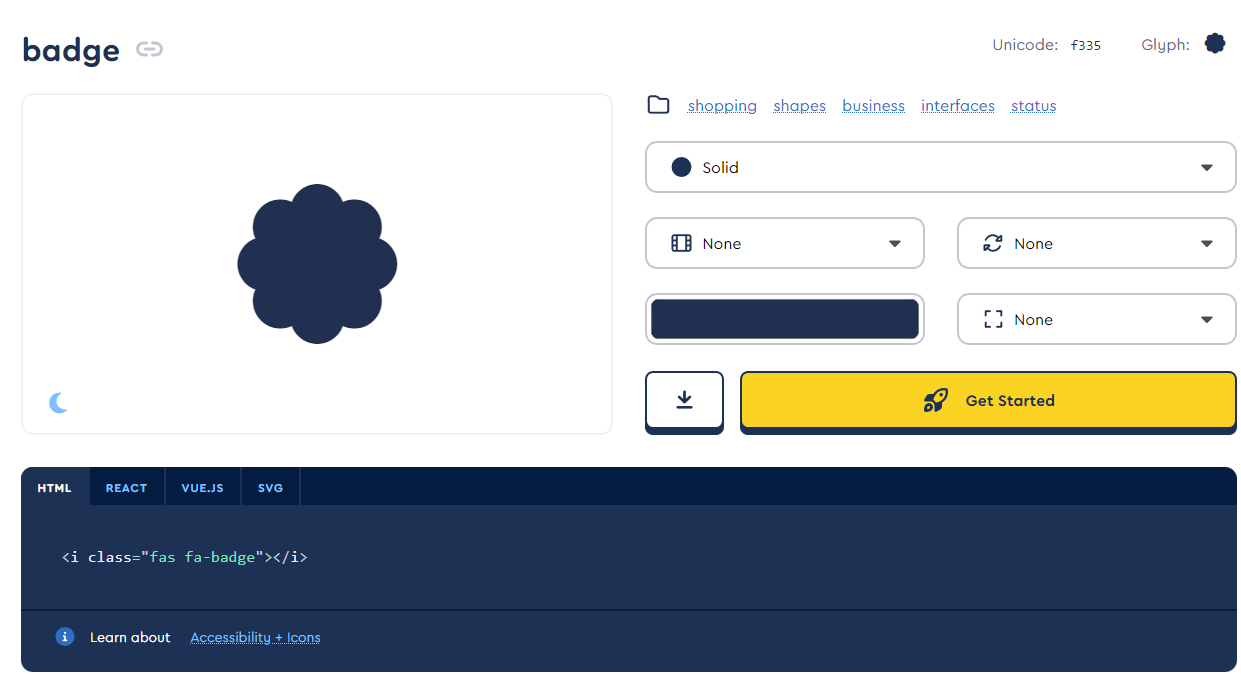

1. Select any available Solid or Regular icon from the list of available icons.

2. Click on the selected icon that you want to use in Highstage.

3. Copy the text within the <i> </i> field:

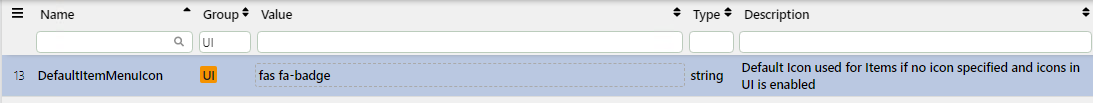

4. Paste the text (ex. fas fa-badge) into the parameter value field for the appropriate Icon parameter:

4. Click Reset in the top navigation menu for the changes to take effect:

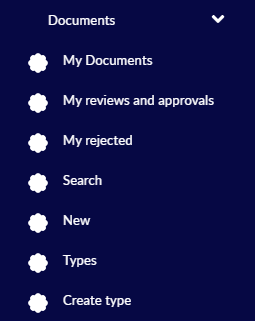

Note: In this example, we added a Badge icon to be the default icon for all links in the side navigation menu.

Sizes

The Size parameters in Highstage are the height and width properties that can be used to set the height and width of specific elements in Highstage. The Size parameters accepts all legal size values that are available in CSS (Cascading Style Sheets). Read more about available size properties and values on w3schools.

Recommendation: We recommend that you define the height and width of elements in pixels (px) for a consistent and static layout throughout Highstage.

Transition

The Transition parameter enables you to add transition effects on the elements associated with the parameter.

This, for instance, enables you to configure a delay, transition or transformation of elements when they are clicked, hovered or activated.

For instance, the following snippet results in a transition where a change of background- and text color will occur over a span of 0.3 seconds:

background .3s,color .3s

Read more about the various CSS transitions on w3schools.

Duration

The Duration parameters accepts positive integer values that reflects time passed in milliseconds.

Text

The Text parameters are the font sizes that are used throughout Highstage. The Text parameters accepts all legal font size units that are available in CSS (custom Style Sheets). Read more about the various ways that font sizes can be declared on MDN web docs.

Toggle

A checkbox, allowing you to enable (✔️) or disable (❌) a parameter.​

Weight

The Weight parameters sets how bold or thin characters in text elements in Highstage should be displayed. Read more about the various ways that Weight can be defined on w3schools.

Shadow

A shadow parameter sets a shadow on an existing element. Read more about how shadows can be defined on MDN web docs.

Default UI

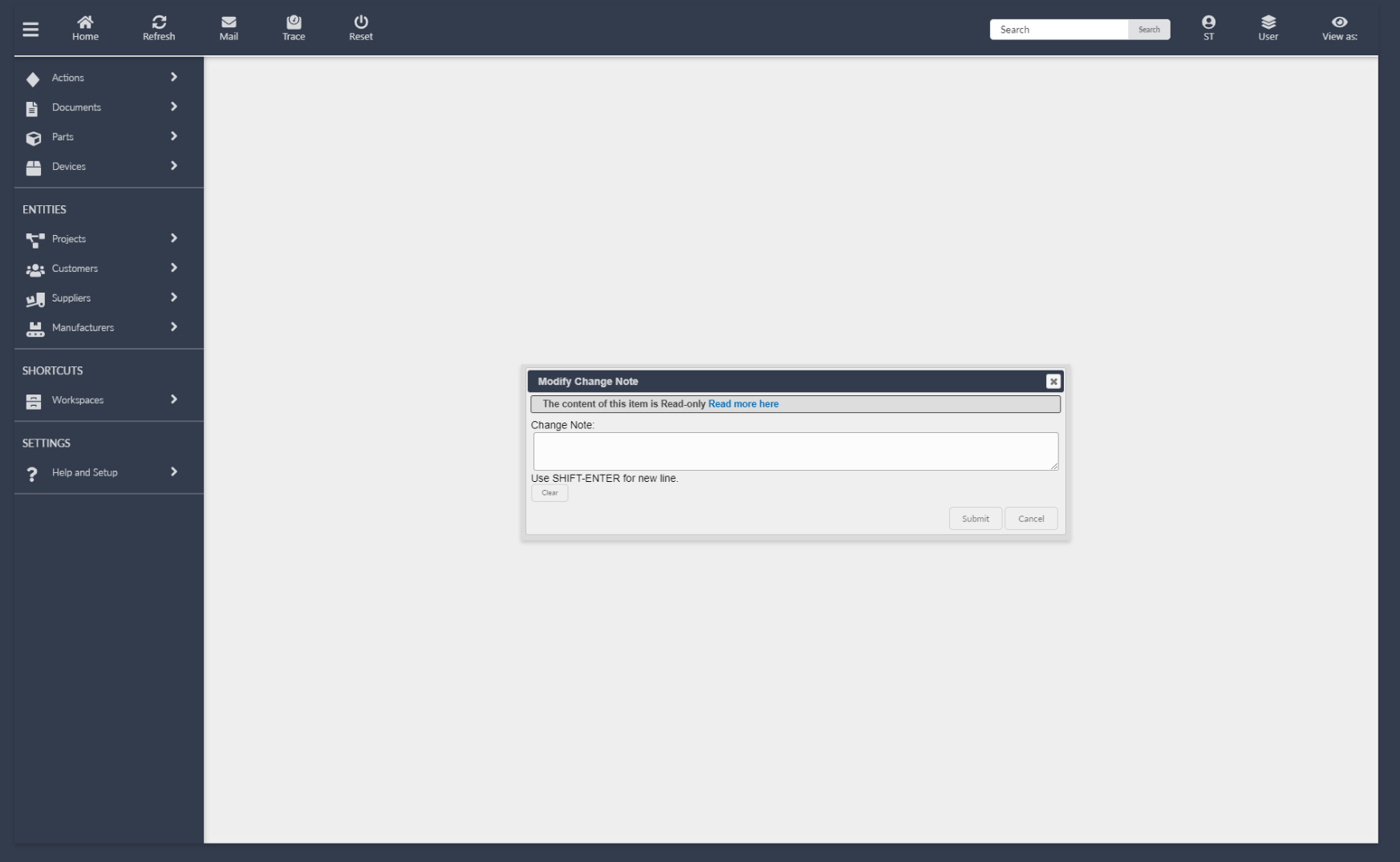

The combined list of default parameters from the available parameters will result in the following appearance of Highstage:

Quick customizations

Some instructions to get you started with basic UI customizations.

Changing the primary color

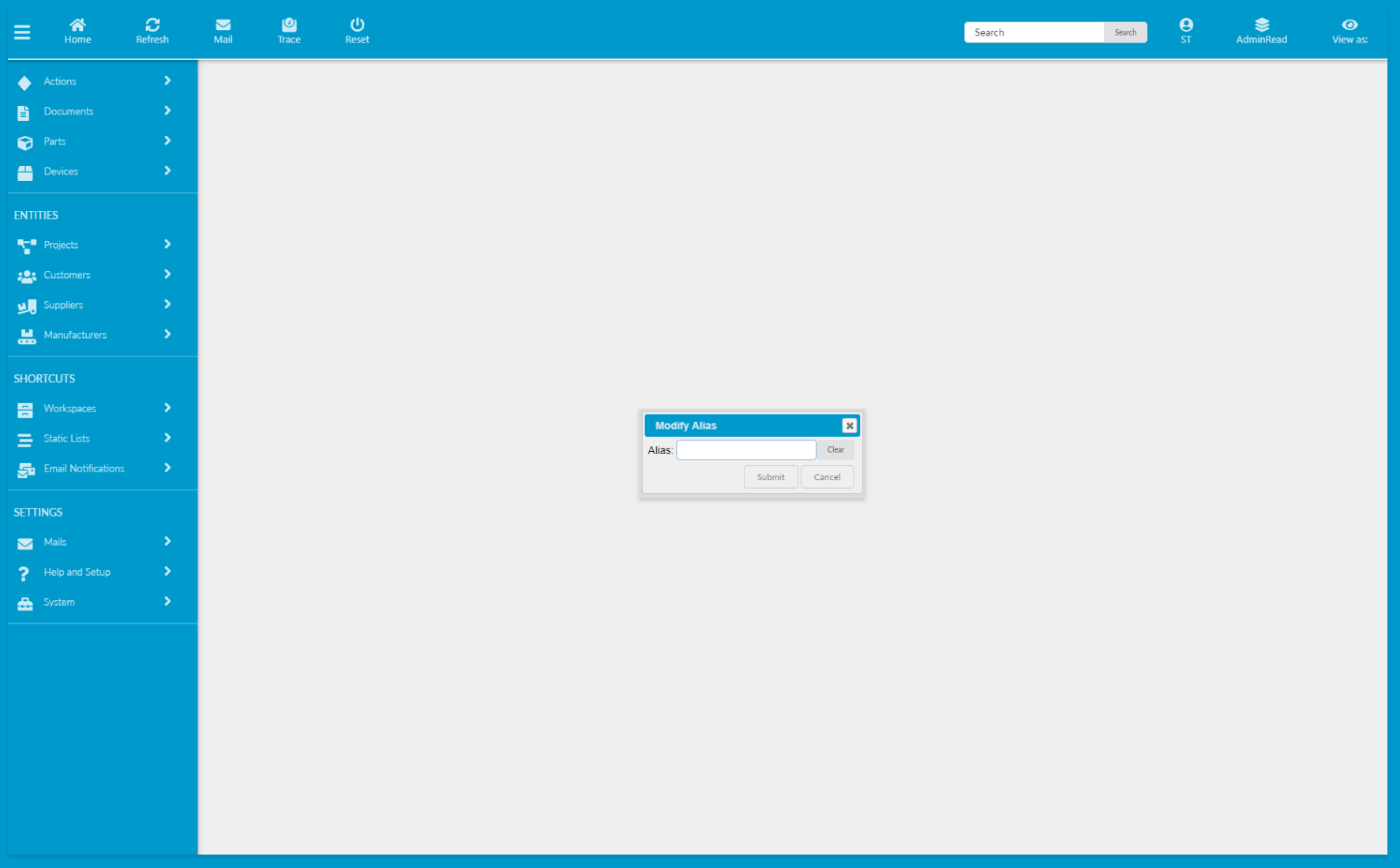

To change the primary used color of Highstage, you can set the Color of the DialogHeaderBGColor, SidemenuBGColor and TopmenuBGColor parameter to any single preferred color for a consistent look:

In this example, we have set DialogHeaderBGColor, SidemenuBGColor and TopmenuBGColor to the hex value of #0099cc.
